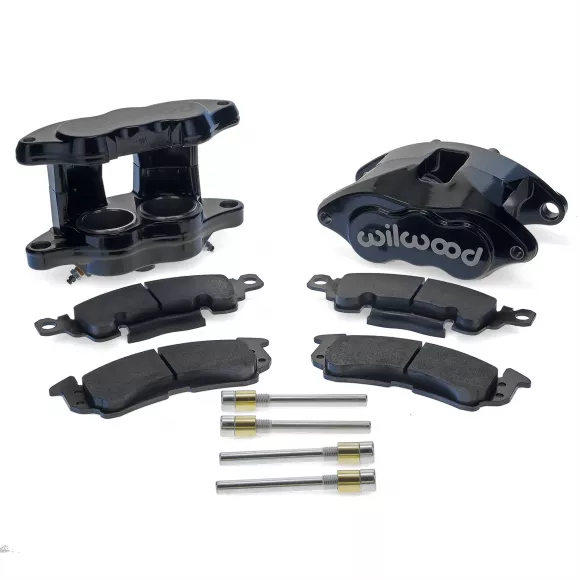

Wilwood GM D52 Dual Piston Calipers, Black Powder Coat, 140-11290-BK SKU: 3024-BK

Wilwood Black GM D52 Dual Piston Calipers 140-11290-BK

Upgrade your braking performance with the Wilwood Black GM D52 Dual Piston Calipers, designed as a direct bolt-on replacement for factory single-piston calipers on many 1968-96 GM passenger vehicles and trucks. These high-performance calipers are built with forged billet aluminum bodies, stainless steel pistons, and competition-style high-temperature seals to eliminate the common issues of rust, bore pitting, and seal failure found in OE calipers.

These D52 calipers provide a significant weight reduction, enhanced performance, and reliable high-temperature operation for both street and track use. The calipers are designed to fit in the stock location, utilizing the original style OE D52 brake pads and a 7/16-20 banjo bolt brake line. With 6.28 square inches of piston area per caliper, these dual-piston calipers maintain the original front-to-rear brake bias and can be used with the factory master cylinder.

• Fitment: 1968-96 GM Passenger Vehicles and Trucks (with OE-style mounting)

• Material: Forged billet aluminum body, stainless steel pistons

• Piston Size: 2.00" pistons, 6.28 square inches of piston area per caliper

• Pads: Uses original style OE D52 brake pads

• Mounting: Direct bolt-on replacement, fits over stock rotors

• Brake Lines: Vehicles 1978 & up with M10-1.5 banjo bolts will require new brake lines

• Kit Includes: Hardened slide pins and BP-10 high friction pads

For low-maintenance, high-performance braking with a sleek red finish, the Wilwood D52 Dual Piston Calipers deliver the stopping power you need while enhancing the appearance of your vehicle. Matching rear calipers are also available for custom installations.
