Stealth Mod Bumper Mount with HP.70 LED Lights, 21-24 Ford Bronco SKU: 6G-5021

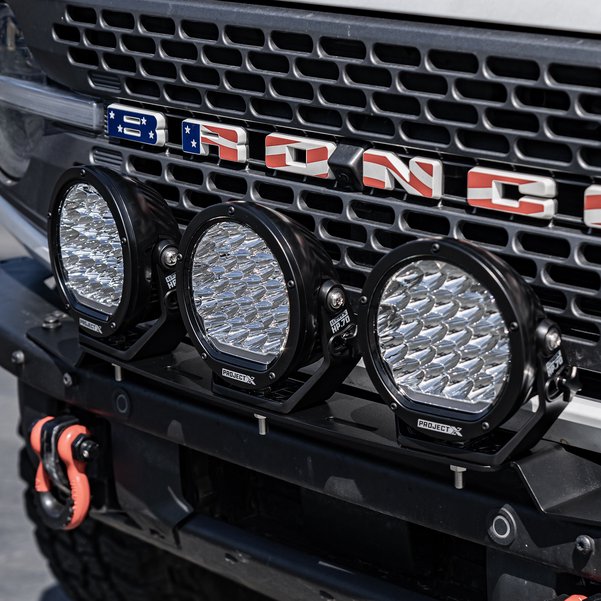

The WH Stealth Aux Light mount is an easy way to add lights mount to your existing Ford Bronco modular front bumper. It has subtle lines that follow the curvature of the Modular bumper so it looks right at home. This "kit" includes 3 Project X Series X HP.70 LEDs to brighten your path.

NOTE: For Broncos equipped with front camera. view could be diminished and or blocked based on size and placement of lights. If you have no front camera, please disregard this notice.

Wiring NOTES: Lights come with wiring pigtails which attach to the lights with a DT connector. The DT connector plugs directly into the back of the light for a clean and easy installation and quick disconnect if needed. There are many ways to power your Project X lights one such way would be to install the Project X Ghost Box and module. Alternatively, a switch and relay provided by the installer will work. For 2021+ Broncos the overhead AUX switches (if equipped) can be integrated into the mix.

Connect with the Wild with the Project X - Series X High Power LED auxiliary lights. The Series X LED lights feature best in class performance and is engineered using Osram LED technology to cut through the darkness and light the trail ahead with a powerful combo beam. Featuring an integrated Active Thermal Management System (ATMS), the HP.70 delivers 120 watts of pure white light (5700K) in a broad penetrating beam of light.

Features:

1. 5-Watt High Power Osram-LEDs producing 120W of pure white light (5700°K) and 15,000 raw lumens (8889 effective) per light


2. Highly Polished super-efficient aluminum metalized reflector utilizing precisely scalloped parabolas for ultimate control and performance


3. Signature built-in LED light pipe meets ECE requirements for front position light improving daytime driving visibility and safety.


4. Customize the look of your Series X HP.70s with your choice of 3 inner trim pieces, including “Brocky” Blue, “Dragon” Red and “PROJECT X” Green. The light is fully sealed making the ring simple and easy to swap without compromising light performance or affecting warranty.

SPECS:

• Power:



  • Input voltage: 9-33V


  • LED Power : 120W


  • Current Draw @ 12V : 8.9A


  • Operating Temp : -40°F to 149°F


  • Heat Management : Active, Thermal Management, System (ATMS)


  • Protection : Reverse Polarity Protection


  • EMC : ECE R10






• LEDs:



  • LED Type: Osram LEDs


  • No. LEDs : 24






• Lumens:



  • Color Temp : 5700°K


  • Color Rendering Index : 72


  • Raw Lumens : 15,000


  • Effective Lumens : 8,889


  • Beam Length (1 lamp) : 1 lux @ 1886 Feet


  • Beam Length (2 lamps) : 1 lux @ 2664 Feet


  • Beam Width (1 lamp) : 1 lux @ 147 Feet


  • Beam Width (2 lamps) : 1 lux @ 206 Feet






• Construction:



  • Housing: Pressure die-cast aluminum


  • Lens : Hard coated Polycarbonate


  • Hardware : Stainless Steel


  • IP Rating : IP66 & IP67


  • Weight : 3.85 lbs


  • *See Pictures Above for Dimensions





Includes:

• HP.70 Combo Beam LED Driving Light x 1


• Hard Coated Polycarbonate Lens Protector x 1


• Trims: Brocky Blue, Dragon Red, PROJECT X Green x 1 of each


• Wiring Pigtail with DT Connector x 1


• Stainless Steel Mounting Hardware Kit x 1
