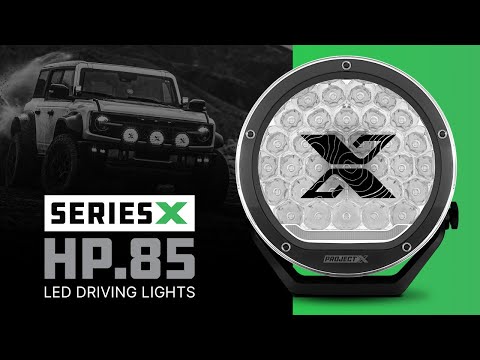

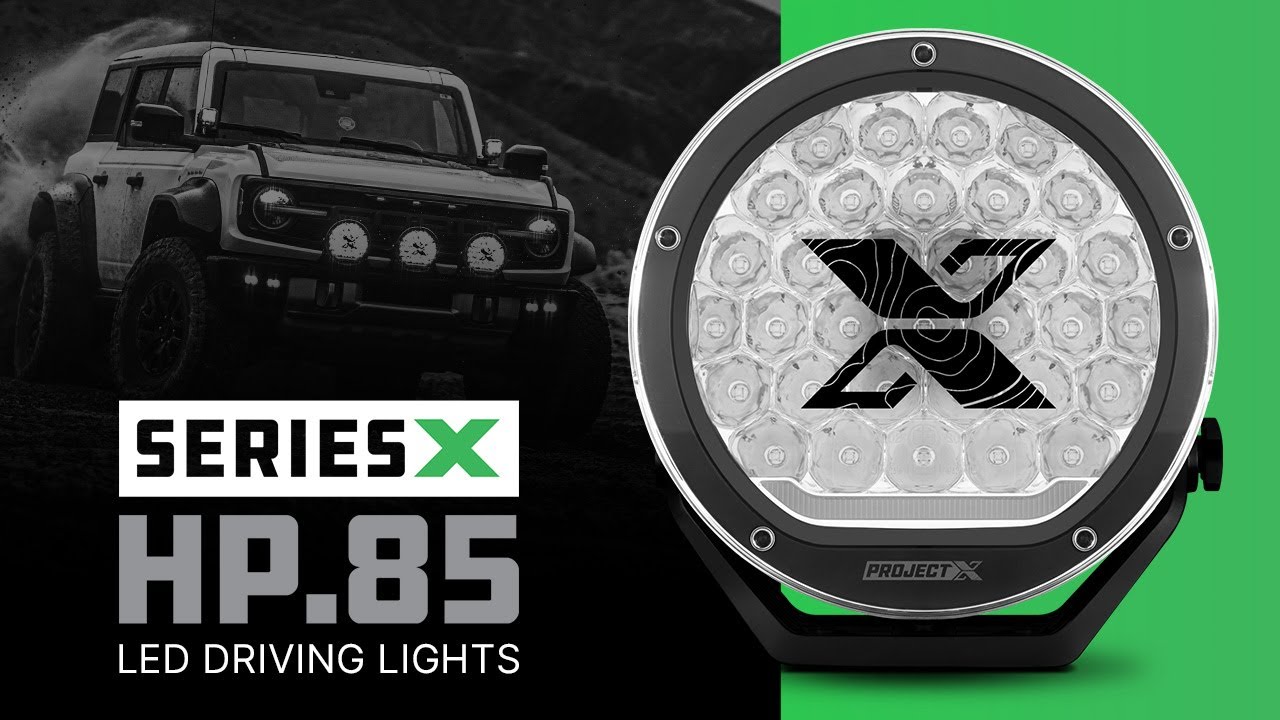

PROJECT X - HP.85 High Power 8.5-inch LED Auxiliary Light, Combo Beam SKU: 10253

Product Overview:

Connect with the Wild with the Project X - Series X High Power LED auxiliary lights. The Series X LED lights feature best in class performance and is engineered using Osram LED technology to cut through the darkness and light the trail ahead with a powerful combo beam. Featuring an integrated Active Thermal Management System (ATMS), the HP.85 delivers 165 watts of pure white light (5700K) in a broad penetrating beam of light.

Features:

1. 5-Watt High Power Osram-LEDs producing 165W of pure white light (5700°K) and 21,780 raw lumens (15,410 effective) per light


2. Highly Polished super-efficient aluminum metalized reflector utilizing precisely scalloped parabolas for ultimate control and performance


3. Signature built-in LED light pipe meets ECE requirements for front position light improving daytime driving visibility and safety.


4. Customize the look of your Series X HP.85s with your choice of 3 inner trim pieces, including “Brocky” Blue, “Dragon” Red and “PROJECT X” Green. The light is fully sealed making the ring simple and easy to swap without compromising light performance or affecting warranty.

SPECS:

• Power:



  • Input Voltage : 9-33V


  • LED Power : 165W


  • Current Draw @ 12V : 14.4A


  • Operating Temp : -40°F to 149°F


  • Heat Management : Active Thermal Management System (ATMS)


  • Protection : Reverse Polarity Protection


  • EMC : ECE R10






• LEDs:



  • LED Type : Osram® LEDs


  • No. LED's : 33






• Lumens:



  • Color Temp : 5700°K


  • Color Rendering Index : 72


  • Raw Lumens : 21,780


  • Effective Lumens : 15,410


  • Beam Length (1 lamp) : 1 lux @ 2536 Feet


  • Beam Length (2 lamps) : 1 lux @ 3585 Feet


  • Beam Width (1 lamp) : 1 lux @ 67 Feet


  • Beam Width (2 lamps) : 1 lux @ 285 Feet






• Construction:



  • Housing : Pressure die-cast aluminum


  • Lens : Hard coated Polycarbonate


  • Hardware : Stainless Steel


  • IP Rating : IP66 & IP67


  • Weight : 7.05 lbs


  • *See Pictures Above for Dimensions





Includes:

• HP.85 Combo Beam LED Driving Light x 1


• Hard Coated Polycarbonate Lens Protector x 1


• Trims: Brocky Blue, Dragon Red, PROJECT X Green x 1 of each


• Wiring Pigtail with DT Connector x 1


• Stainless Steel Mounting Hardware Kit x 1
