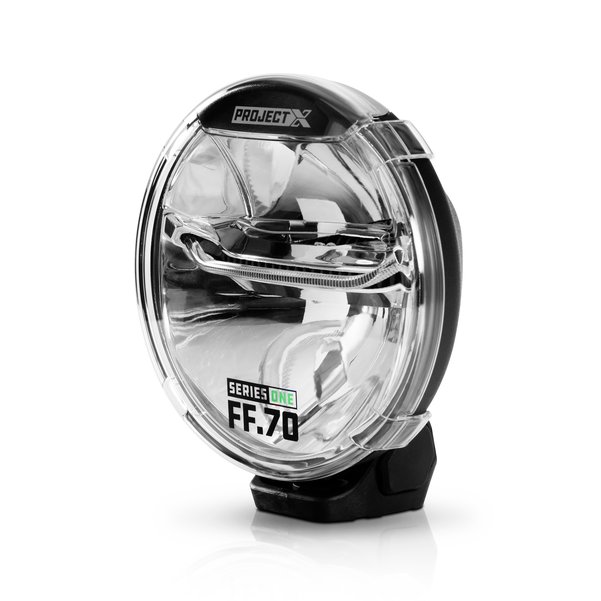

PROJECT X - FF.70 Free Form 7-inch LED Auxiliary Light, Flood Beam SKU: 10260

Product Overview:

Connect with the Wild with the Project X - Series One Free Form LED auxiliary lights. The Series One utilizes enhanced free form optics to capture and focus more of the light generated from the LEDs to produce a greater penetrating light output down the road, eliminating wasted light and focusing the beam where you need it most. Available in both Spot and Flood beams.

Features:

1. Enhanced free form optics capture and focus more of the light generated from the LEDs to produce a greater penetrating light output down the road, eliminating wasted light and focusing the beam where you need it most.


2. The very latest in Cree^® XHP50.2 LED chip sets produce an extremely efficient yet powerful white light output (5000°K) and 3,800 raw lumens (1,663 effective) per light.


3. The proof is in the data - the Series One's unique design creates a superior optic in a lightweight package that will perform in any condition.


4. Signature built-in LED light pipe meets ECE requirements for front position light improving daytime driving visibility and safety.


5. Customize the look of your Series One FF.70s with your choice of 2 glare shield caps in Black or PROJECT X Green

SPECS:

• Power:



  • Input Voltage : 9-33V


  • LED Power : 30W


  • Current Draw @ 12V : 3A


  • Operating Temp : -40°F to 149°F


  • Heat Management : Active Thermal Management System (ATMS)


  • Protection : Reverse Polarity, Protection


  • EMC : ECE R10






• LEDs:



  • LED Type : 15W XHP50.2, Cree® LEDs


  • No. LED's : 2






• Lumens:



  • Color Temp : 5000°K


  • Color Rendering Index : 70


  • Raw Lumens : 3,800


  • Effective Lumens : 1,663


  • Beam Length (1 lamp) : 1 lux @ 1443 Feet


  • Beam Length (2 lamps) : 1 lux @ 2034 Feet


  • Beam Width (1 lamp) : 1 lux @ 147 Feet


  • Beam Width (2 lamps) : 1 lux @ 206 Feet






• Construction:



  • Housing : Fiber Reinforced Polymer


  • Lens : Hard coated Polycarbonate


  • Hardware : Stainless Steel


  • IP Rating : IP67


  • Weight : 2.42 lbs


  • *See Pictures Above for Dimensions





Included:

• FF.70 Flood Beam LED Driving Light x 1


• Hard Coated Polycarbonate Lens Protector x 1


• Interchangeable Project X Green Glare Shield Cap x 1


• Wiring Pigtail with DT Connector
