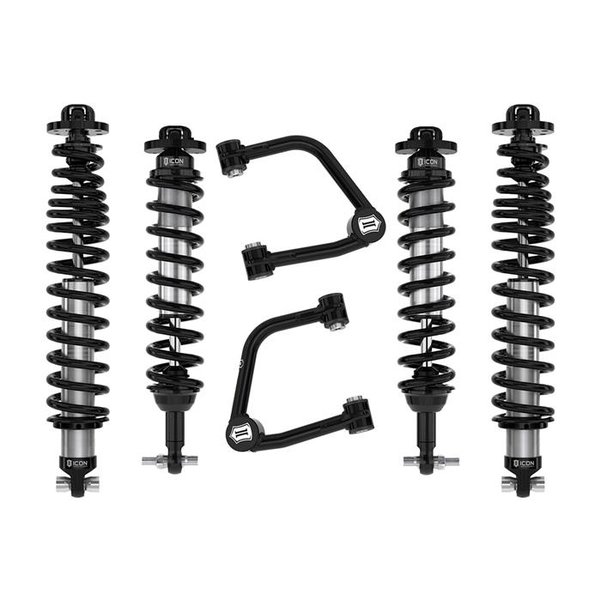

ICON 2-3" Suspension Lift, Tube Arms, Stage 3, 21-24 Ford Bronco Sasquatch SKU: 6g-6310

ICON 2-3" Suspension Lift, Tube Arms, Stage 3, 21-24 Ford Bronco Sasquatch

ICON 21-UP Bronco Sasquatch Stage 3 Suspension System TUBULAR

Free Shipping!

Product Overview:

Upgrade your 2021+ Ford Bronco with the ICON Vehicle Dynamics Stage 3 Suspension System! This top-notch lift kit features precision-made, custom valved internal reservoir coilover shocks, delivering unbeatable travel & ride quality both on and off-road. The adjustable coilovers provide a front lift of 2-3” and a rear lift of 1.25-2.25”, perfect for the Sasquatch Package-equipped Broncos. With tubular steel upper control arms and ICON's patented Delta Joint PRO, you're set for up to 11.5" front and 14" rear suspension travel with 35" tires.

Adjustable Coilovers provide 2-3" Front Lift & 1.25-2.25" Rear Lift over stock Sasquatch Bronco
Includes Tubular Steel Upper Control Arms

FREE SHIPPING to anywhere in the 48 contiguous states. The shipping charge for this item will have already been deducted from the shipping charge in checkout. Customers outside the 48 states will be contacted with shipping charges for approval prior to shipping.
NOTE: For non-defective returns, original shipping costs incurred by Wild Horses will be deducted from any refunds. Customers responsible for any return shipping costs incurred.

Full description

Adjustable Coilovers provide 2-3" Front Lift & 1.25-2.25" Rear Lift over stock Sasquatch Bronco
Includes Tubular Steel Upper Control Arms

The ICON Vehicle Dynamics Stage 3 Suspension System for the 2021-UP Ford Bronco features precision-manufactured, custom valved internal reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-3” of front lift and 1.25-2.25” of rear lift over stock 4-door Broncos with the Sasquatch Package. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 3 kit comes with Tubular Upper Control Arms which provide on-vehicle caster and camber adjustability and feature ICON's patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately).

Features:

Improved suspension performance and ride quality over stock
Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
Vehicle specific tuned internal reservoir front and rear shocks for superior damping and vehicle control
Adjustable coilovers yield up to 2-3" of front lift height and 1.25-2.25” of rear lift height over stock 4-door Sasquatch package equipped Broncos
PTFE lined spherical bearings and application specific mounting hardware
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
ICON engineered coil springs featuring a unique triple rate rear coil design
High strength alloy CNC machined lower bar pins
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
100% Bolt-on system - no drilling, cutting, or welding necessary for install

Tech Info:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
APPLICATION NOTE #66: 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS.
APPLICATION NOTE #132: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611075 IN THE FRONT
APPLICATION NOTE #133: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611074 FOR THE REAR
APPLICATION NOTE #134: LIFT HEIGHTS & APP NOTES BASED ON SASQUATCH EQUIPPED VEHICLES
TECH NOTE: Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
TECH NOTE: Bronco Everglades will have front lift height range of 1.5-2.5" over stock
TECH NOTE: Not compatible with Bronco Raptor
