Edelbrock Pro-Flo 4 EFI Kit, SBF 351W Engines 35950 SKU: EDELBROCK-35950
Edelbrock Pro-Flo 4 EFI Kit, SBF 351W Engines 35950
Product Overview:
The Edelbrock Pro-Flo 4 EFI kit is the best fuel injection conversion you can buy for your early Bronco. The Edelbrock Pro-Flo 4 EFI System supercharges your Ford 351W small block V8
with a 450HP capable direct fuel injection system, user-friendly app tuning, and a streamlined, upgraded ECU.
Trust your early Bronco EFI fuel injection conversion to Edelbrock, the top name in automotive fuel systems since 1938.
Full description
Trust your early Bronco EFI fuel injection conversion to Edelbrock, the top name in automotive fuel systems since 1938.
The Edelbrock part # 35950 Pro-Flo 4 EFI System for Small-Block Ford 351W C.I. engines is equipped with the latest in technology and features.

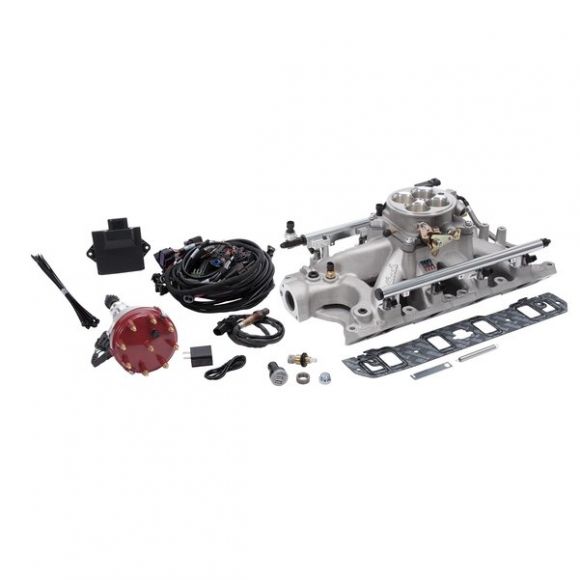

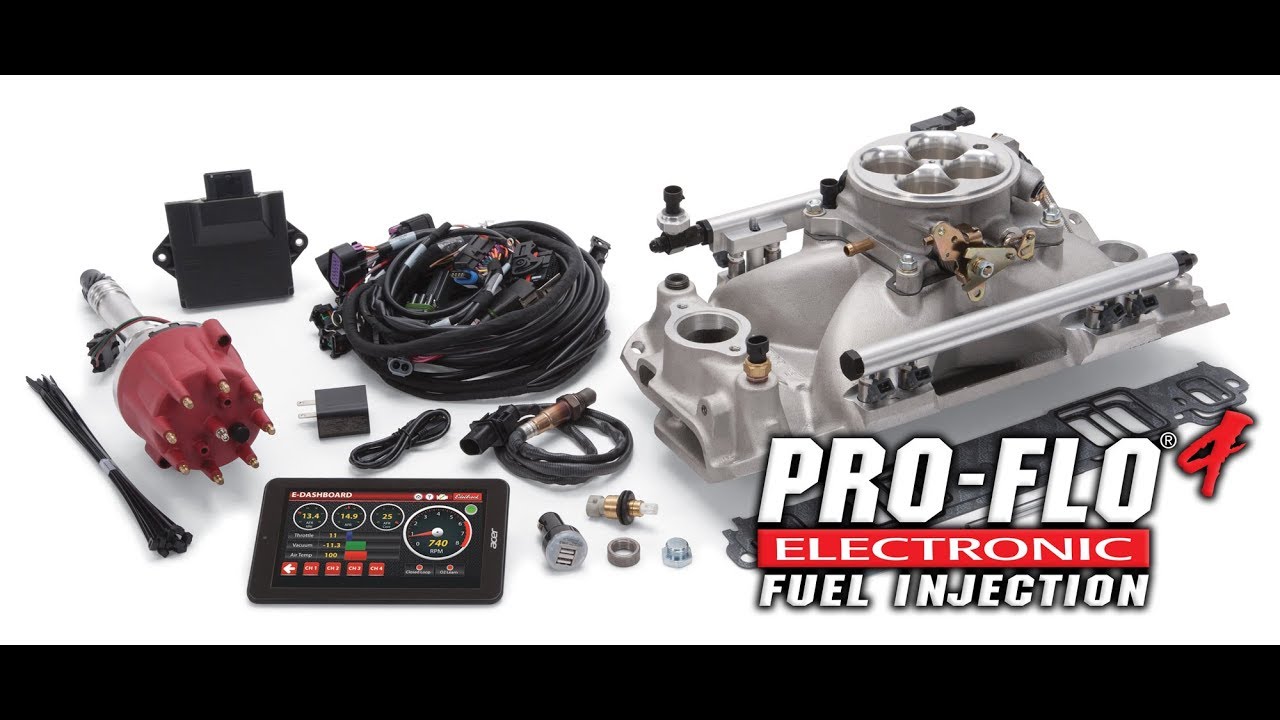

The EFI system comes complete with a traditional 4150-Style satin finish single plane intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation.
The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for.
The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get maximum performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android or ISO based smart phone or tablet. Multiple dash displays are included to allow you to monitor engine vitals with an Android or ISO smart phone or tablet. Pro-Flo 4 does not require laptop tuning.
Q&A
Please Sign In if you have a question or want to post an answer.
Asked by Tom, December 4, 2023
Q: I have 351 with stock hood and 1 inch body lift, will this likely have room to fit without hood modifications?
Answered by ☆ sales - December 15, 2023
A: With the right air cleaner, you should be okay. Honestly it is impossible to say for sure.
Asked by Keith Raffel, July 16, 2021
Q: Currently using a Fitech EFI, many issues! Will the Command Center high pressure fuel pump work with the Edlebrock EFI system?
Answered by ☆ sales - July 21, 2021
A: The Edelbrock system has the same or near same requirements as the Fi-Tech. We would not expect any issues using the Command Center, if it has been working so far. The Pro-Flo 4 EFI system requires a high pressure fuel system providing 43-45 or 58-60 psi of fuel pressure with a minimum flow rating
of 57 GPH (215 liter/hr).
Asked by Art, June 16, 2021
Q: will this work with C6 trans kick down linkage
Answered by ☆ sales - June 21, 2021
A: To our knowledge, it can, but, a kick-down bracket and or adapter will likely be needed. Eldelbrock should have more specific details.
