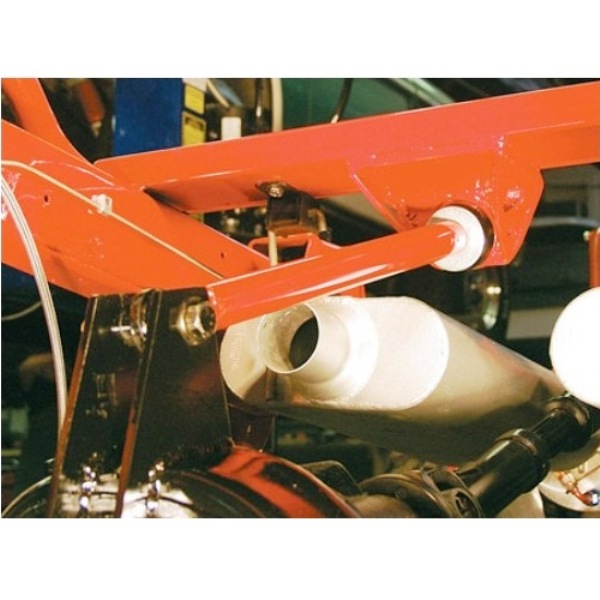

Wrap Trap Axle Anti-Wrap System, 66-77 Bronco SKU: 1190
Wrap Trap Axle Anti-Wrap System, 66-77 Bronco
Wrap Trap Axle Anti-Wrap System 66-77 Bronco
Product Overview:
Axle wrap is a common problem in old Broncos. We have seen so-called traction bars in varying configurations. Many which don't work or cause serious ground clearance and travel reduction issues. The WH Wrap Trap is the simple answer that can help this problem.
First allow us to explain what axle wrap is. When torque is applied to the rearend by the driveshaft, that torque is applied to the pinion yoke, which is attached to the pinion gear. As the pinion gear turns it tries to "climb" up the ring gear. All this torque rotates the entire rearend housing upward if you are going forward and down if you are in reverse. That in a nut shell is axle wrap.
In the worst scenarios we have experienced the rear axle housing wraps until the rear driveshaft lower yoke breaks from the bind that is placed on it. The design of the Wrap Trap virtually eliminates axle wrap in forward and reverse under slow rock crawling situations. The Wrap Trap does not affect articulation because of its centered mounting position. We feel this is a must for rock crawlers who want to keep from tearing up rear drive shafts.
Axle wrap can further be reduced with some simple maintenance like keeping the U-bolts tight. For the best axle control package, install our Extreme duty U-bolt kit with the Wrap Trap. If you are having a problem with axle wrap you will notice a big difference from the moment you install the Wrap Trap.
Full description
Axle wrap is a common problem in old Broncos. We have seen so-called traction bars in varying configurations. Many which don't work or cause serious ground clearance and travel reduction issues. The WH Wrap Trap is the simple answer that can help this problem.
First allow us to explain what axle wrap is. When torque is applied to the rearend by the driveshaft, that torque is applied to the pinion yoke, which is attached to the pinion gear. As the pinion gear turns it tries to "climb" up the ring gear. All this torque rotates the entire rearend housing upward if you are going forward and down if you are in reverse. That in a nut shell is axle wrap.
In the worst scenarios we have experienced the rear axle housing wraps until the rear driveshaft lower yoke breaks from the bind that is placed on it. The design of the Wrap Trap virtually eliminates axle wrap in forward and reverse under slow rock crawling situations. The Wrap Trap does not affect articulation because of its centered mounting position. We feel this is a must for rock crawlers who want to keep from tearing up rear drive shafts.
Axle wrap can further be reduced with some simple maintenance like keeping the U-bolts tight. For the best axle control package, install our Extreme duty U-bolt kit with the Wrap Trap. If you are having a problem with axle wrap you will notice a big difference from the moment you install the Wrap Trap.
First allow us to explain what axle wrap is. When torque is applied to the rearend by the driveshaft, that torque is applied to the pinion yoke, which is attached to the pinion gear. As the pinion gear turns it tries to "climb" up the ring gear. All this torque rotates the entire rearend housing upward if you are going forward and down if you are in reverse. That in a nut shell is axle wrap.
In the worst scenarios we have experienced the rear axle housing wraps until the rear driveshaft lower yoke breaks from the bind that is placed on it. The design of the Wrap Trap virtually eliminates axle wrap in forward and reverse under slow rock crawling situations. The Wrap Trap does not affect articulation because of its centered mounting position. We feel this is a must for rock crawlers who want to keep from tearing up rear drive shafts.
Axle wrap can further be reduced with some simple maintenance like keeping the U-bolts tight. For the best axle control package, install our Extreme duty U-bolt kit with the Wrap Trap. If you are having a problem with axle wrap you will notice a big difference from the moment you install the Wrap Trap.
Axle wrap is a common problem in old Broncos. We have seen so-called traction bars in varying configurations. Many which don't work or cause serious ground clearance and travel reduction issues. The WH Wrap Trap is the simple answer that can help this problem.
First allow us to explain what axle wrap is. When torque is applied to the rearend by the driveshaft, that torque is applied to the pinion yoke, which is attached to the pinion gear. As the pinion gear turns it tries to "climb" up the ring gear. All this torque rotates the entire rearend housing upward if you are going forward and down if you are in reverse. That in a nut shell is axle wrap.
In the worst scenarios we have experienced the rear axle housing wraps until the rear driveshaft lower yoke breaks from the bind that is placed on it. The design of the Wrap Trap virtually eliminates axle wrap in forward and reverse under slow rock crawling situations. The Wrap Trap does not affect articulation because of its centered mounting position. We feel this is a must for rock crawlers who want to keep from tearing up rear drive shafts.
Axle wrap can further be reduced with some simple maintenance like keeping the U-bolts tight. For the best axle control package, install our Extreme duty U-bolt kit with the Wrap Trap. If you are having a problem with axle wrap you will notice a big difference from the moment you install the Wrap Trap.
First allow us to explain what axle wrap is. When torque is applied to the rearend by the driveshaft, that torque is applied to the pinion yoke, which is attached to the pinion gear. As the pinion gear turns it tries to "climb" up the ring gear. All this torque rotates the entire rearend housing upward if you are going forward and down if you are in reverse. That in a nut shell is axle wrap.
In the worst scenarios we have experienced the rear axle housing wraps until the rear driveshaft lower yoke breaks from the bind that is placed on it. The design of the Wrap Trap virtually eliminates axle wrap in forward and reverse under slow rock crawling situations. The Wrap Trap does not affect articulation because of its centered mounting position. We feel this is a must for rock crawlers who want to keep from tearing up rear drive shafts.
Axle wrap can further be reduced with some simple maintenance like keeping the U-bolts tight. For the best axle control package, install our Extreme duty U-bolt kit with the Wrap Trap. If you are having a problem with axle wrap you will notice a big difference from the moment you install the Wrap Trap.
Instruction 1
California residents: Proposition 65 Warning
Q&A
Have a question? Click Here to submit your question.
Asked by kevin, October 28, 2023
Q: will this work on 90 bronco with a 9in rear or do i need to do some fab work to make it work. having trouble with alot of axle wrap breaking u-joints and drivelines
⮞ 1 Answer
Answered by ☆ sales - November 1, 2023
A: Sorry, this is only for the 66-77 Bronco frame. You would need to modify the frame mount cross member in the kit at the very least.
Asked by Anonymous, August 16, 2023
Q: Can this be installed with the inboard shock hoop? Thanks.
⮞ 1 Answer
Answered by ☆ sales - September 15, 2023
A: Yes, you can run both.
Asked by Carl Barclay, November 22, 2021
Q: I just purchased one and am wondering if you can provide any guidance on when to use the front hole versus the rear hole?
⮞ 1 Answer
Answered by ☆ sales - November 22, 2021
A: The holes just give extra adjustment and flexibility, With a fixed point at the frame, The extra hole and adjustable rod give you have a little more wiggle room for the install and suspension changes.
Asked by Robert Christopher Liegey, July 11, 2021
Q: How long is the main bar
⮞ 1 Answer
Answered by ☆ sales - July 12, 2021
A: The bar shaft is approximately 17 long.
Asked by Timothy Millek, February 4, 2021
Q: I've had this installed for 14 years and it's been great. Looking at possibly going with a high pinion diff. Do you know of any potential clearance issues? Currently have a 4-1/2 lift.
⮞ 1 Answer
Answered by ☆ sales - February 8, 2021
A: The wrap trap is not recommended for use with a high pinion 9.
Asked by Kim Jacobsen, June 14, 2020
Q: I did a shackle flip on my 68 Bronco resulting in a 3 lift, will it be ok to use your Wrap Trap with this arrangement?
⮞ 1 Answer
Answered by ☆ sales - June 15, 2020
A: We would not expect an issue with your shackle flip and the wrap trap. You just need sufficient space between the axle brackets and the body through the suspensions travel.
Asked by Paul Siskind, April 27, 2017
Q: Purchased a Wrap Trap several years ago, works great. Noticed today the bushing had split and fallen out. Do you have replacements? Thanks!
Paul
⮞ 1 Answer
Answered by ☆ sales - April 28, 2017
A: We do, they are part # 1194.
