Transfer Case Detent Ball & Spring Kit, 66-77 Bronco SKU: 8576
Transfer Case Detent Ball & Spring Kit, 66-77 Bronco
Transfer Case Detent Ball & Spring Kit 66-77 Bronco
Product Overview:
Ensure your early Bronco Dana 20 transfer case stays securely in gear with our Heavy Duty Dana 20 Detent Springs and Balls. Designed to address the common issue of having the transfer case pop out of gear due to worn-out springs, our heavy-duty springs provide significantly greater holding force, rated at 148 lbs per inch. This complete kit includes new detent balls for smooth and reliable performance, giving you the confidence to tackle any trail or road with ease.
Full description
Ensure your early Bronco Dana 20 transfer case stays securely in gear with our Heavy Duty Dana 20 Detent Springs and Balls. Designed to address the common issue of having the transfer case pop out of gear due to
worn-out springs, our heavy-duty springs provide significantly greater holding force, rated at 148 lbs per inch. This complete kit includes new detent balls for smooth and reliable performance, giving you the
confidence to tackle any trail or road with ease.

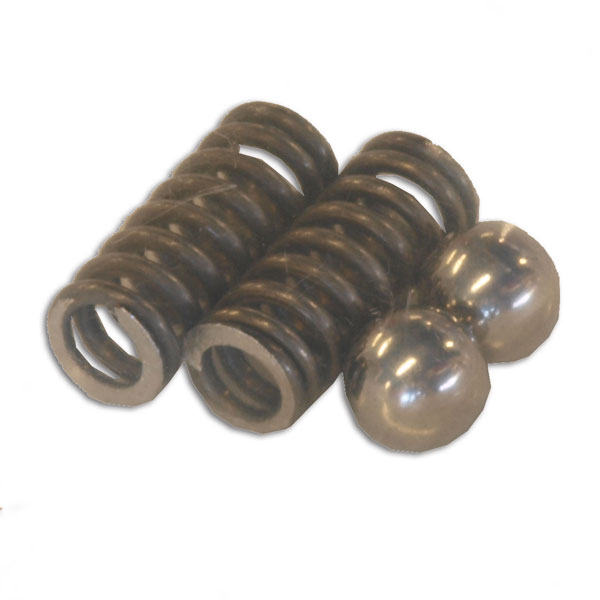

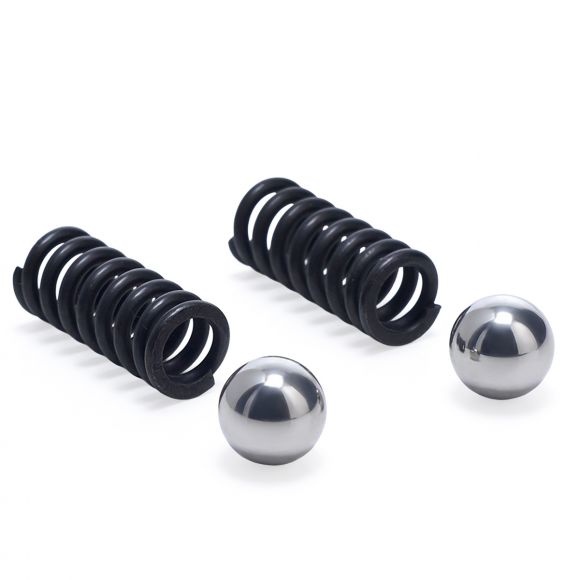

HD Early Bronco Dana 20 Transfer Case Detent Springs & Balls
Keep Your Bronco in Gear with Confidence!
Over the years, the Dana 20 transfer case found in early Broncos can start popping out of gear due to worn-out springs. Originally rated between 91 and 113 lbs per inch, these springs can weaken to around 70 lbs per inch after decades of use.
Why Choose Our Heavy Duty Springs?
- Increased Holding Force: Our new heavy duty springs are rated at 148 lbs per inch, providing significantly greater holding power than the stock springs.
- Complete Kit: Includes new detent balls to ensure smooth operation and reliable performance.
Upgrade to our heavy duty detent springs and balls to keep your Dana 20 transfer case securely in gear, no matter where your adventures take you.
California residents: Proposition 65 Warning
Q&A
Have a question? Click Here to submit your question.
Asked by Alan, December 11, 2020
Q: Without having a body lift, can the detent balls and springs be accessed and replaced with the transfer case mounted in the Bronco?
⮞ 1 Answer
Answered by ☆ sales - December 14, 2020
A: Sorry, we have never done it with the t-case in the Bronco. It would depend on the Broncos floor as well. If you have or can make access.
Asked by R Thomas, June 26, 2020
Q: What is the diameter of the balls?
⮞ 1 Answer
Answered by ☆ sales - June 26, 2020
A: The balls are 5/16 in diameter.
Asked by Anonymous, March 9, 2017
Q: Can this be done without disassembling the transfer case?
⮞ 1 Answer
Answered by ☆ sales - March 10, 2017
A: Yes, they are replaceable from the outside.
Asked by Mark, July 10, 2013
Q: What holds detent ball & spring into position can not find anything or pictures?
⮞ 1 Answer
Answered by ☆ 8578 - July 11, 2013
A: Special bolts are made to hold in the ball and spring.
