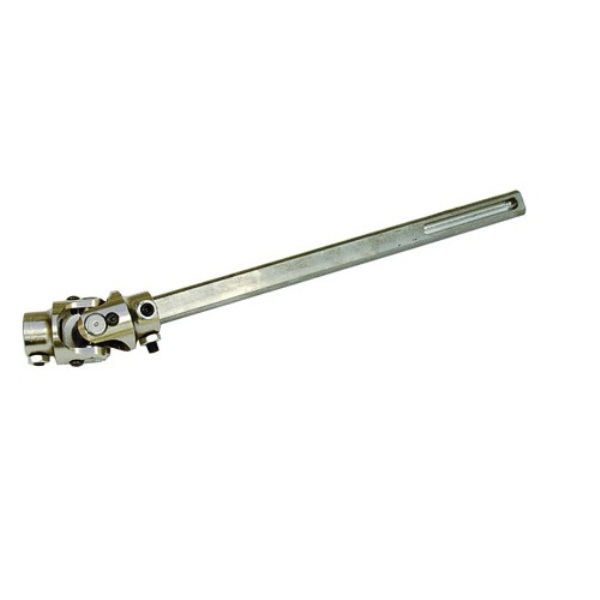

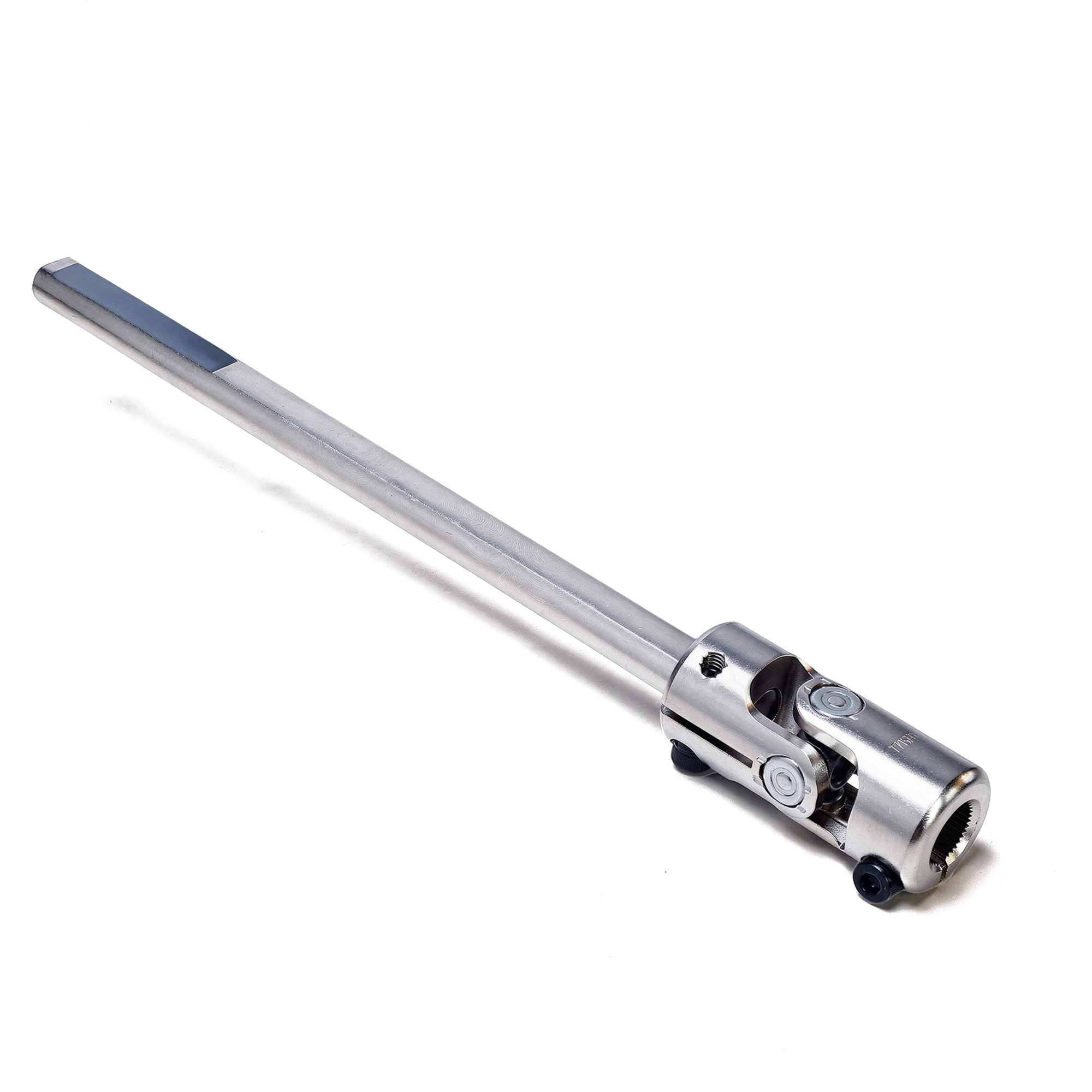

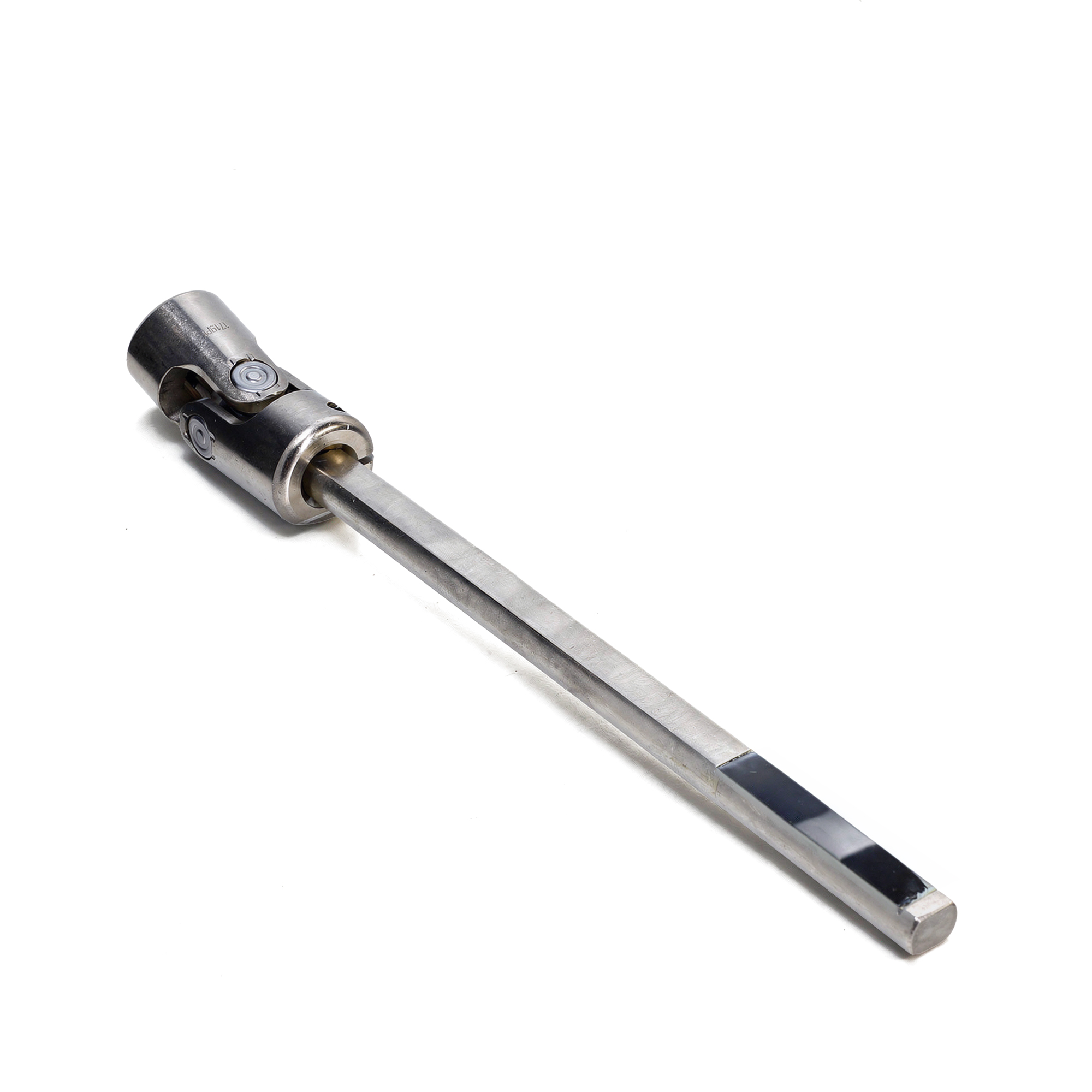

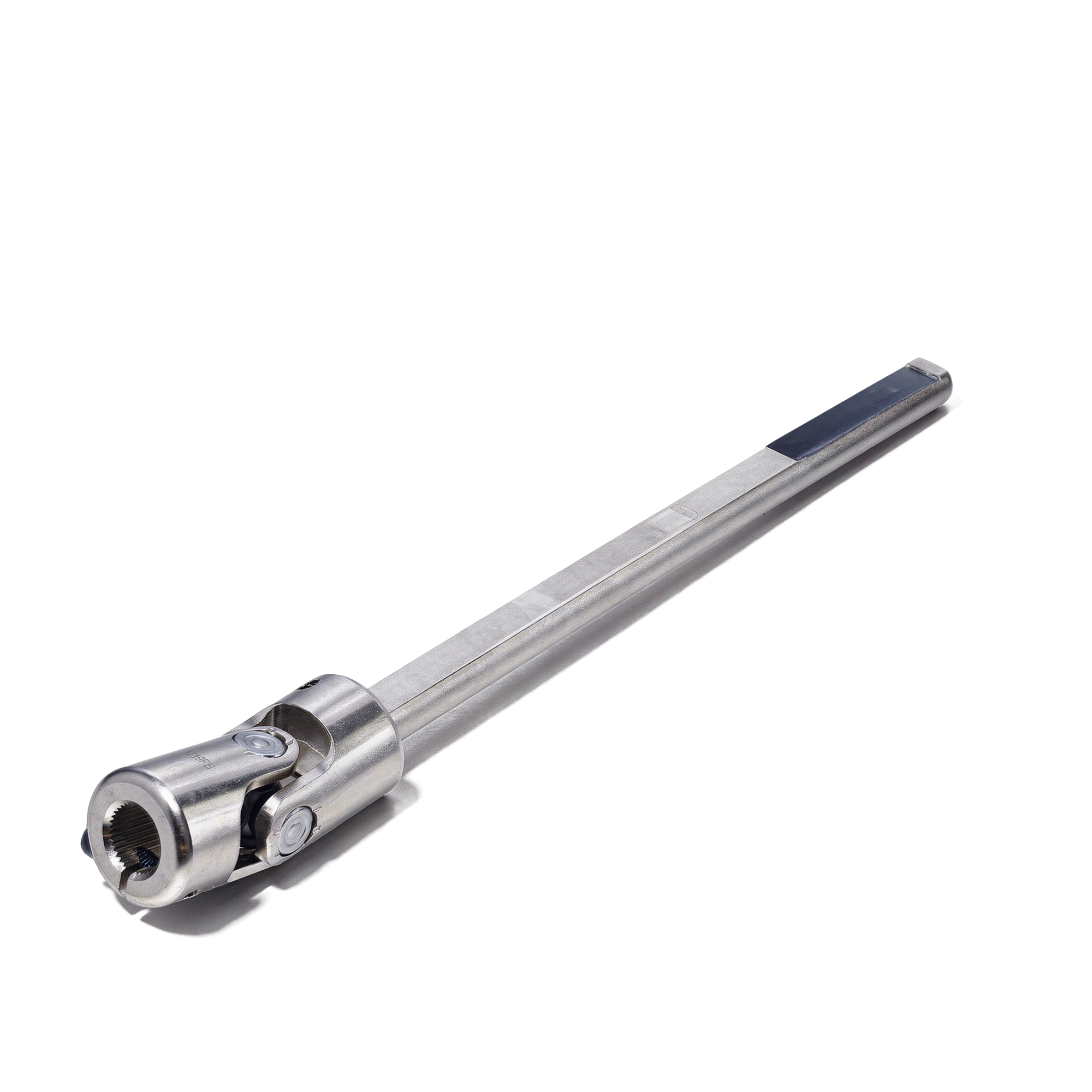

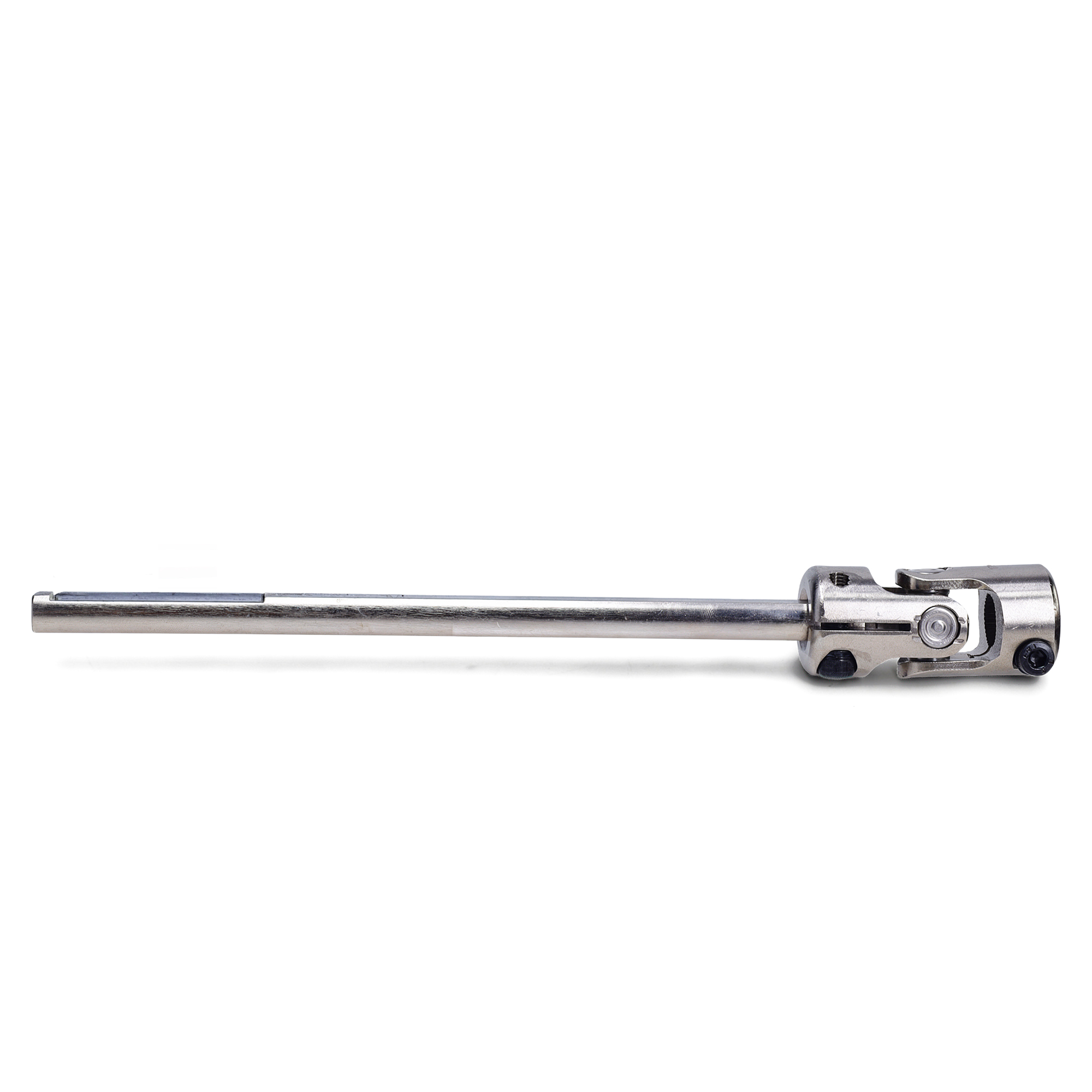

Half Slip Shaft for Stock Power Steering, 72-77 Bronco SKU: 2168
Half Slip Shaft for Stock Power Steering, 72-77 Bronco
Product Overview:
1/2 Slip Shaft for Stock Power Steering
This option is for 76-77 Broncos only. You can remove the lower half of the lower shaft and replace just that part with our 1/2 shaft. Our 1/2 shaft will slide right in place of the original 1/2 shaft.
Full description
This option is for 76-77 Broncos only. You can remove the lower half of the lower shaft and replace just that part with our 1/2 shaft. Our 1/2 shaft will slide right in place of the original 1/2 shaft.
Q&A
Have a question? Click Here to submit your question.
Asked by R Don Geelan, June 14, 2022
Q: Does the lower Universal Joint attach with a cinch bolt engaging the steering box input spline shaft groove like the stock Universal joint or does it use a set screw with jam nut?
Answered by ☆ sales - June 14, 2022
A: The box joint will have a set screw and Jam nut. You may also drill a dimple in the shaft for added security, and we recommend Blue Loctite on the set screw as well.
Asked by Jason, August 16, 2021
Q: What size and thread pitch are the internal hex head set screws? I lost one and need to to the size.
Answered by ☆ sales - August 24, 2021
A: The set screws are 5/16-18.
Asked by Robert fisher, February 21, 2020
Q: What is the length of this lower shaft?
Answered by ☆ sales - February 24, 2020
A: The lower shaft is 12 without the joint, roughly 14.5 end to end with the joint installed.
Asked by Michael, February 4, 2020
Q: What diameter and spline does this fit? I am unsure if my box is factory or not and dont want to order without knowing for sure if it will fit.
Answered by ☆ sales - February 4, 2020
A: The included joint is 13/16 - 36 splines. We also have #2167 which features a 3/4 -36 splined joint.
