Trail Edition Gear Banger NP435 Shifter, 66-77 Ford Bronco SKU: 8303NET

Trail Edition Gear Banger NP435 Shifter, 66-77 Ford Bronco

Trail Edition Gear Banger NP435 Shifter 66-77 Bronco

Product Overview:

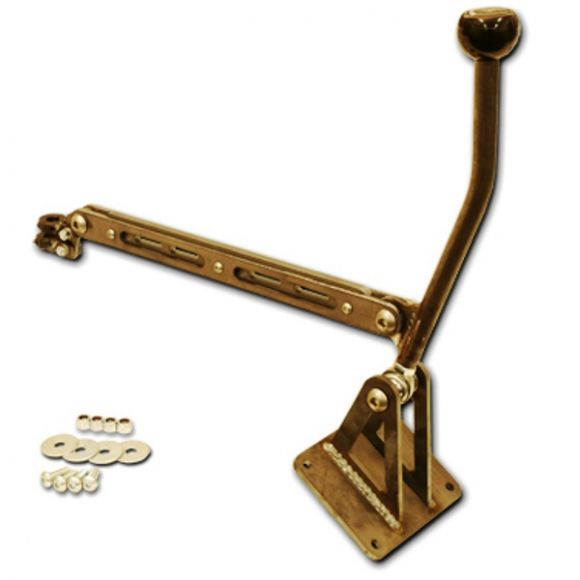

The much anticipated and updated NP-435 Trail Edition Gear Banger has arrived! The TEGB makes shifting your transmission smooth and easy. No longer will you need that long, twisted shifter sticking out of the floor banging your knuckles against the dash.

The Gear Banger brings the shift knob back to a comfortable position close to the seat while out of the way of your transfer case shifters. Its shorter throws and shifting convenience will make driving your Bronco a pleasure.

The TEGB has a new three piece linkage design that lends itself to customization. Thrust bushings and a rod end shift handle allow for smooth operation. All pieces are fastened together with acorn nuts and button head fasteners to give this model a clean finished look. The TEGB comes in a raw steel finish so you can paint or powder coat as you desire.

Shifter bases are available for 0-3 inch body lift sizes. Shorter throws can be achieved by adjusting the new double clamp shift collar. Due to transmission shifter variations, the customer will need to measure their original NP-435 shifter to receive the correct shift collar.

Johnny customized his new Trail Edition Gear Banger by powder coating his parts in black and red to match his bronco.

Full description

California residents: Proposition 65 Warning

Q&A

Please Sign In if you have a question or want to post an answer.

Asked by Ronnie, November 26, 2019

Q: Will the gear banger interfere with the console or cup holders?

⮞ 8 Answers

Answered by ☆ sales - November 26, 2019

A: No, normally there are no interference issues. We do have the installation instructions available on the product page for reference.

7 answer(s) under review.

Asked by Anonymous, March 1, 2016

Q: What is the length of the linkage arm between the pivot pins, and the total length of the shift lever? Also, what changes when selecting the different body lift height? Looking at this as an option for a custom truck (non-Bronco).

⮞ 1 Answer

Answered by ☆ sales - March 1, 2016

A: The arm length is approx. 15 1/4, the handle is approx. 14 tall. The handle base is what changes. It is 5 3/8 tall for stock to 1 BL, and 3 3/4 tall for 2-3 BL.

7 answer(s) under review.

NEED HELP? Talk to a BRONCO expert today! (209) 400-7200

PRODUCT REVIEWS

Eric Jefferson

Reviewed 04/24/2022

So to be perfectly honest, I am a Jeep guy with a 77 Jeep CJ5, powered by a SBC 350c backed by a T14 3 speed. I saw your shifter and thought, hey I can make that work on mine too! I crossed the Ford line and stole your shifter for my Jeep! It works great! I had to lower the center point on the shifter considerably but it works!

Anthony Branca

Reviewed 05/21/2021

Great quality product. Changed the entire driving experience in my 71.

Tim Anderson

Reviewed 09/06/2020

The trail banger is the ideal way to drop an NP-435 into a classic Bronco. Since it relocates the shifter back to a more natural location and shortens the throw between gears it can't be matched. The mechanic that installed my transmission couldn't get over what a great idea it was once he figured out what it was.

scott marek

Reviewed 04/15/2020

Wild Horses was very helpful in getting information to me as to whether this shift kit would work on a full size 1982 Bronco with a NP-435 tranny. They said that once I do a dry mock up of the shifter in my Bronco, if it didn't fit I could return it. It fit just fine. The biggest challenge was welding a new stub onto the cutoff shifter of the original tranny. In these later years the shift arm bends right out of the top loader, so the bend has to be cut off, and a new straight stub welded on for attachment to the shift kit clamp. The instructions provided were very good from Wild Horses. Very important to try the shifter out, then loosen up the clamp on the shift arm, and make very minor "wiggle" adjustment to find the sweet spot for shifting up into first gear. One improvement to the shifter could be made. Rather than have the large stainless pivot bolts and their threads be in direct contact with the holes on the large connecting lever, these bolts should be smaller and bronze bushings used instead for a more perfect fit. There is about .005 inch play on both ends of the connecting lever with the current configuration. Removing a total of .010 inch of total play would make the shifter even better yet.

Scott Toevs

Reviewed 04/06/2019

Too long and bent the wrong way. I cut the rod off to make a short straight shifter and added 1" to the "hole tab" so the shifter is now straight up and down.

Mike

Reviewed 02/10/2015

Very positive and firm shifting. Don't think twice about this upgrade.

Mike M.

Reviewed 10/06/2014

ALWAYS AMAZING! I am so impressed with your service, always prompt, great products, great prices!

83Warrior

Reviewed 01/30/2014

Super nice works and looks great outstanding craftsmanship

Wade O

Reviewed 05/20/2012

Excellent product. Designed well and makes the np435 much easier to shift. A must have!

mark-grove

Reviewed 06/13/2011

High quality components and saves having a warped NP435 Shift handle with twin-stick setup.

Kevin C

Reviewed 05/15/2011

I had a shift collar size other than the two choices (looked like it was just a mistake when the original shifter was made) which was easy to correct and use one of the available sizes. Install was very easy, and it puts the shifter right where you want it. Another great product from WH!

Jay T

Reviewed 02/04/2009
