OE Style Auxiliary Side Fuel Tank, 66-77 Ford Bronco SKU: 9796
OE Style Auxiliary Side Fuel Tank, 66-77 Ford Bronco
OE Style Auxiliary Side Fuel Tank 66-77 Bronco
Product Overview:
OEM-quality replacement auxiliary fuel tank for 66-77 Ford Bronco. This is an excellent reproduction of the factory front auxiliary early Bronco gas tank.
Do the job right! Upgrade to our OE Style Auxiliary Early Bronco Side Fuel Tank Kit w/Skid Plate, Sending Unit & Hoses and get everything you need to update your factory early Bronco auxiliary fuel tank.
Full description
OEM-quality replacement auxiliary fuel tank for 66-77 Ford Bronco. This is an excellent reproduction of the factory front auxiliary early Bronco gas tank.
Do the job right! Upgrade to our OE Style Auxiliary Early Bronco Side Fuel Tank Kit w/Skid Plate, Sending Unit & Hoses and get everything you need to update your factory early Bronco auxiliary fuel tank.
Early Bronco Side Auxiliary Fuel Tank

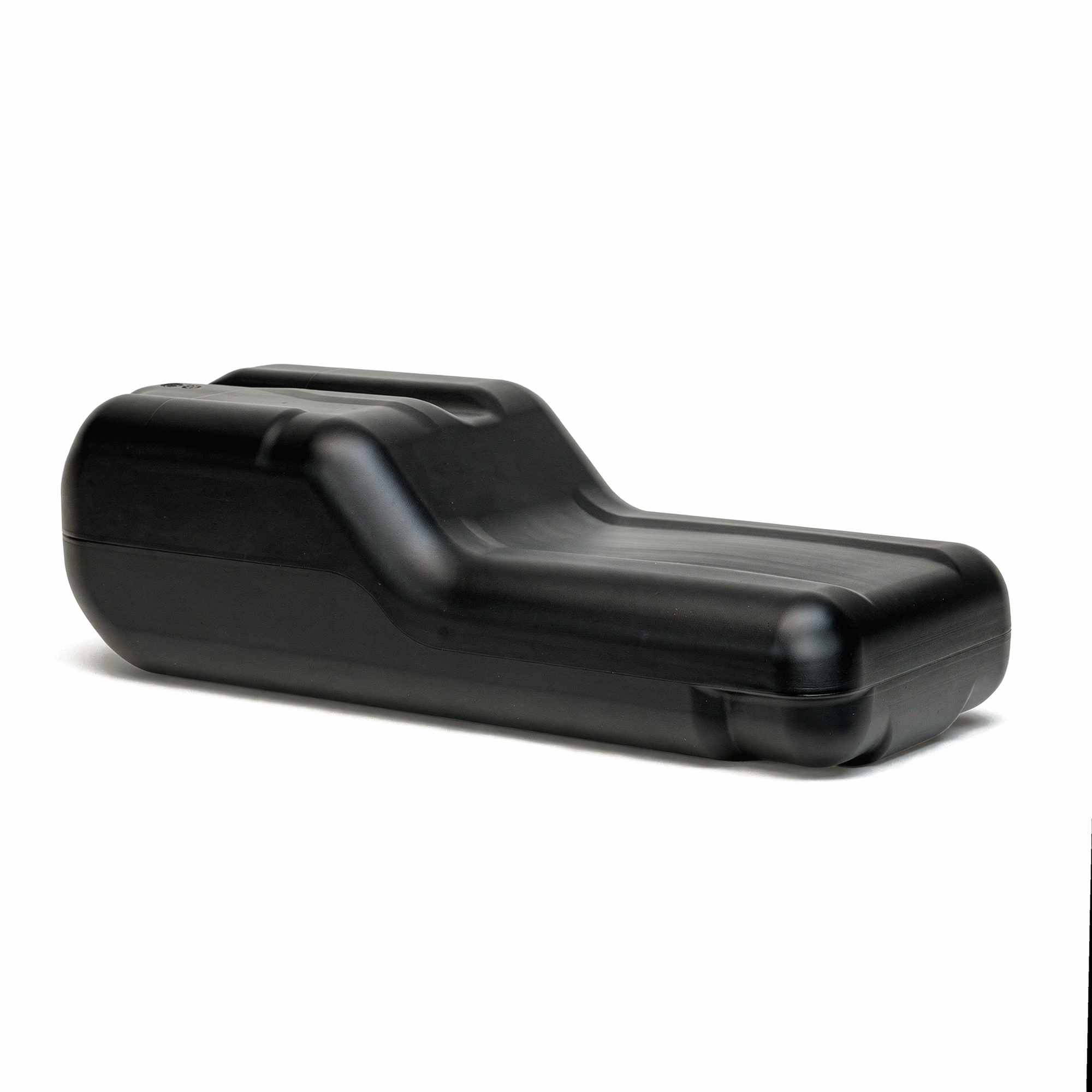

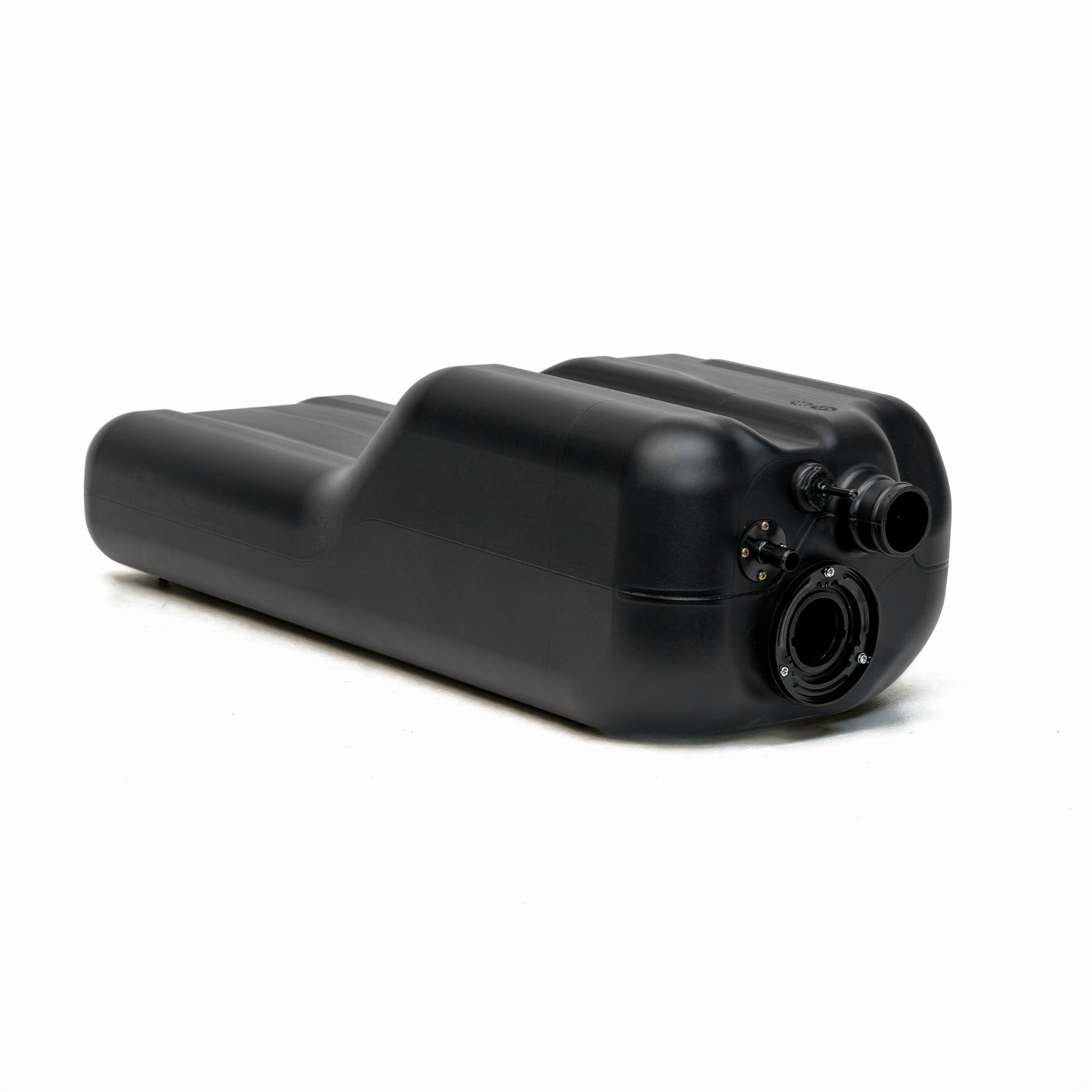

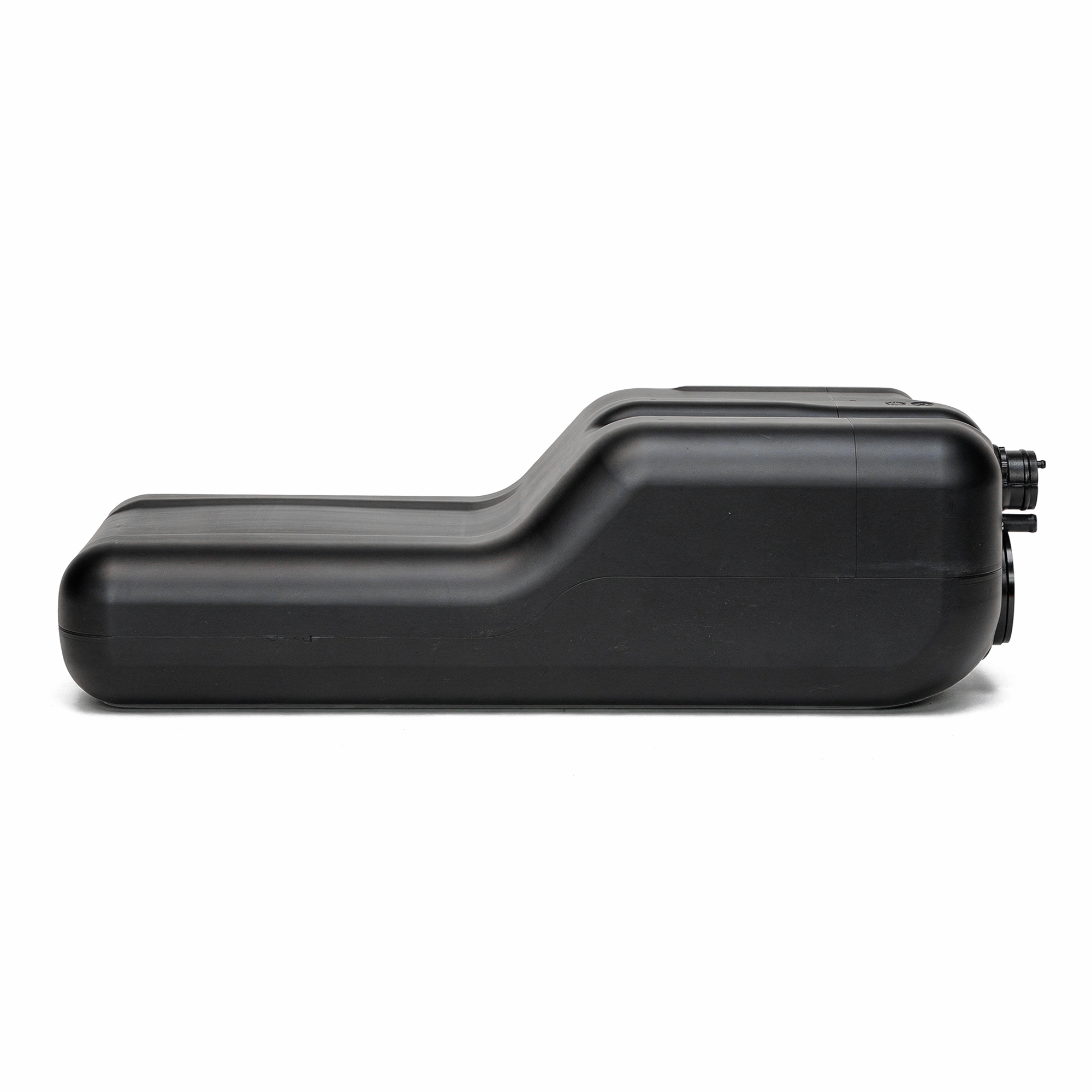

New OE style poly gas tank is an exact replica of the stock early Bronco front auxiliary fuel tank. This early Bronco fuel tank is a replica of the original 1970-77 Ford Bronco front driver side auxiliary fuel tank. This fuel tank mounts on the driver side of a 66-77 Ford Bronco under the seat area and adds about 8 gallons of extra fuel capacity—perfect for those long drives or off-road adventures. Our reproduction early Bronco auxiliary fuel tank holds approximately 8 gallons of fuel and is fitted with the overfill vent and EVAP vent hose fittings. The overfill vent first came stock on the Ford Bronco around 1969. The EVAP vent hose fittings were factory on mid-1970 Ford Broncos and later. Owners of earlier model Broncos will need to cap off any unused vent hose fittings.
Check out our Auxiliary Fuel Tank Kit to get all the additional parts needed for a complete fuel tank refresh.

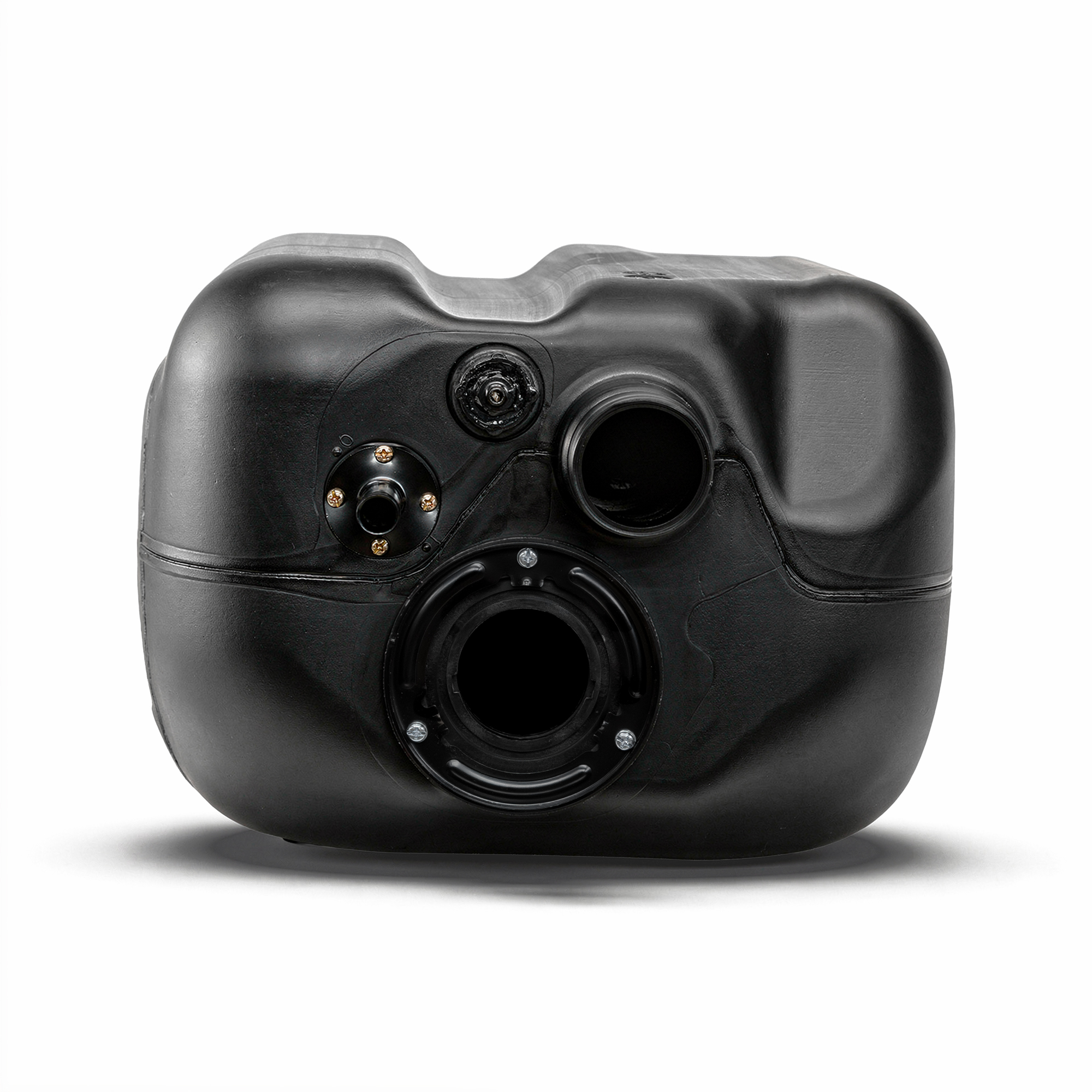

OE-Type Fuel Sending Unit Mount for Leak Free Performance: Don't settle for other aftermarket poly auxiliary fuel tanks that use bolts to retain the fuel sender. These aftermarket tanks are notorious for leaking due to overtightening, under tightening or uneven fastening of the securing bolts. Our factory style auxiliary early Bronco fuel tank doesn't have this problem. It uses a locking ring to retain the fuel sender just like the stock original tank. This locking ring setup is extremely reliable at providing a leak-proof seal for your classic Bronco gas tank.
Factory Type Metal Fuel Filler & Vent Tubes: Another premium feature of our early Bronco side fuel tanks is the factory-correct metal fuel filler and vent tubes. These tubes are zinc-plated for corrosion resistance. This auxiliary fuel tank is made exclusively for Wild Horses 4x4 to our specifications. We have ensured these tubes are installed correctly in the gas tank so that there is no interference with the sending unit as can be a common issue with some other versions of this tank.
Key Features:
-
OE-Type Front Auxiliary Fuel Tank – Direct fit replacement for 66-77 Ford Bronco front auxiliary tank.
-
Locking Ring Sender Mount – No leaky bolt-on senders here—just a secure, factory-style seal.
-
Zinc-Plated Filler & Vent Tubes – Resists rust and installed in correct position to avoid interference with sending unit.
-
Wild Horses Exclusive – Designed to our specs to ensure quality fit and performance.
-
8 Gallon Capacity – Adds valuable fuel range to your classic Bronco.
For replacing your stock 66-77 Ford Bronco front auxiliary fuel tank, there is no better solution than the Wild Horses OE-Style Early Bronco Auxiliary Fuel Tank.
California residents: Proposition 65 Warning
Q&A
Please Sign In if you have a question or want to post an answer.
Asked by Rory, August 22, 2024 04:19
Q: Can this tank utilize the factory skid plate?
⮞ 1 Answer
Answered by ☆ sales - August 22, 2024 15:37
A: Yes, you can re-use your factory skid plate.
Asked by Anonymous, December 17, 2020
Q: 7.5?, 8? 10.5, or 11.5 gal tank?
Thnx !
⮞ 1 Answer
Answered by ☆ sales - December 18, 2020
A: The tank holds approximately 8 gallons of fuel.
Asked by Vent Caps, August 1, 2020
Q: What vent caps do you recommend for the Overfill Vent and EVAP Vent?
⮞ 1 Answer
Answered by ☆ sales - August 3, 2020
A: Normally a fuel safe, rubber vacuum cap, or a short length of hose does the job from one to the other.
PRODUCT REVIEWS
Carl Strohm
Reviewed 09/25/2024
Tank fit as it should. No issues with install.
mike
Reviewed 02/28/2020
not sure why the second picture shows a sending unit installed but mine did not come with one. should have the sending unit in the "suggested parts" field. other than that, always happy with the quality and service from WH!!
Note From WILD HORSES: Photo fixed and added suggested parts. Thanks!
Neil Knowles
Reviewed 12/29/2011
Nothing but fast and reliable service Nic is a great source for info. I will continue to shop at WH for the next few years while i trick out my 76 bronco thanks for the service and the help
Ken8034
Reviewed 09/19/2011
Received parts on time and the quality was as good as stock or better.
