Ford AOD 4WD Transmission to Dana 20 Adapter, 66-77 Ford Bronco SKU: 8337
Ford AOD 4WD Transmission to Dana 20 Adapter, 66-77 Ford Bronco
Ford AOD 4WD Trans to Dana 20 Adapter 66-77 Bronco
Product Overview:
Upgrade your Early Bronco with modern performance by installing the AOD to Dana 20 Adapter. This adapter allows you to seamlessly pair your classic Bronco with any 4WD Ford AOD transmission, bringing modern reliability and efficiency to your vintage ride. Designed for easy compatibility with a 31 spline output shaft, this kit provides everything you need for a smooth installation, keeping your Bronco running strong and true to its roots.
- Fits 66-77 Ford Bronco with factory Dana 20 Transfer Case
- Works with all 4WD Ford AOD Automatic Transmissions
Full description
Upgrade your Early Bronco with modern performance by installing the AOD to Dana 20 Adapter. This adapter allows you to seamlessly pair your classic Bronco with any 4WD Ford AOD transmission, bringing modern reliability and efficiency to your vintage ride. Designed for easy compatibility with a 31 spline output shaft, this kit provides everything you need for a smooth installation, keeping your Bronco running strong and true to its roots.
- Fits 66-77 Ford Bronco with factory Dana 20 Transfer Case
- Works with all 4WD Ford AOD Automatic Transmissions
Early Bronco AOD Automatic Transmission to Dana 20 Transfer Case Adapter
Fits ALL 4WD Ford AOD Transmission
Looking to add an automatic overdrive transmission to your Early Bronco? This AOD to Dana 20 Adapter is just what you need to pair your classic Bronco with a modern 4WD Ford AOD transmission. Designed to work with AOD transmissions that have a 31 spline output shaft, this adapter kit includes everything you need for a seamless installation.

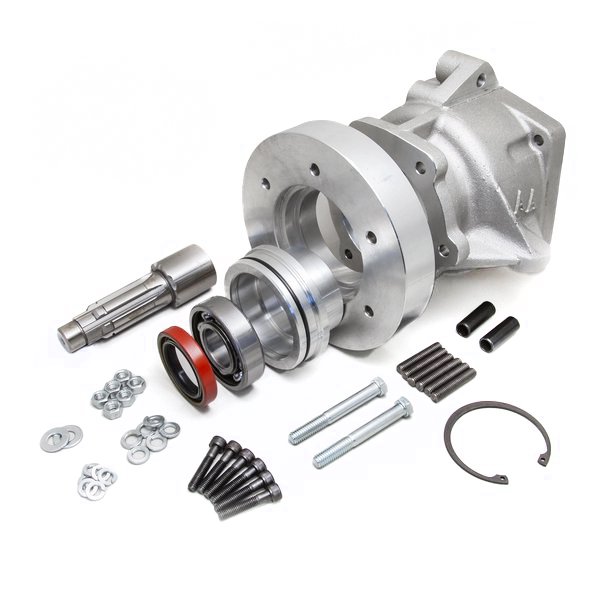

Whats Included:
- Aluminum Adapter Housing
- Spud Shaft
- Adapter Plate
- Cross Member Sleeves
- Adapter Bearing Retainer
- Adapter Bearing
- Adapter Bearing Snap Ring
- Hardware
- Adapter Seal
- Mounting Gaskets
Product Notes:
-
Driveshaft Modification Required: The overall assembly adds approximately 1 1/2" to the length, so driveshaft modifications are necessary.
-
Transfer Case Compatibility: Best suited for T-shift Dana 20 with minor modifications; J-shift Dana 20 requires a twin stick transfer case shifter.
Transform your Bronco with this adapter kit and enjoy the benefits of modern transmission technology in your classic ride. Get your Early Bronco AOD to Dana 20 Adapter today and take your Bronco’s performance to the next level!
Instruction 1
California residents: Proposition 65 Warning
Q&A
Please Sign In if you have a question or want to post an answer.
Asked by Scot Ayau, December 31, 2020
Q: Will this kit work behind a automatic C6 transmission-D20 transfer case?
⮞ 1 Answer
Answered by ☆ sales - December 31, 2020
A: No, the C6 to Dana 20 adapter is different, and can be found under # 8335. This adapter is not compatible with the C6.
Asked by Michael Benner, December 15, 2020
Q: What's the difference between this kit and item #8330?
⮞ 1 Answer
Answered by ☆ sales - December 16, 2020
A: The 8330 kit includes a replacement output shaft for the 2WD version trans, which does not have the correct output shaft stock for adaptation. The 8330 kit will work for both, but the shaft would not be needed for a trans from a 4wd. However, the 8337 kit is for the 4 wheel drive trans only.
Asked by Wes, October 29, 2020
Q: I have a 2wd 4r70w transmission, what additional parts will I need for this adapter? Or what is the easiest/most economical path to convert and adapt to a D20?
⮞ 1 Answer
Answered by ☆ sales - October 30, 2020
A: The adapter is complete. You will need to modify the crossmember, have a way to shift/control it, and have driveshaft modifications to think about. With the 2wd 4R70, this is the easiest most economical path.
Asked by Arvinder, September 7, 2020
Q: do i want to start with a 4WD or 2WD AOD transmission? which one is ideal for the conversion.
⮞ 1 Answer
Answered by ☆ sales - September 9, 2020
A: We find it is normally easier to start with a trans from a 4wd.
Asked by Dave, May 31, 2017
Q: Will this adapter work between a 4R75E and Dana 20?
⮞ 1 Answer
Answered by ☆ sales - May 31, 2017
A: According to Advance Adapters, you would use our part # 8330 for the 4R75E.
Asked by Jesse, November 21, 2016
Q: Do you offer a crossmember that will work with this setup? Instructions say to modify stock crossmember, but would rather buy one if offered
⮞ 1 Answer
Answered by ☆ sales - November 23, 2016
A: We do not, best we could offer would be an original, used crossmember for the Dana 20. It would still need to be modified.
Asked by Rick, May 13, 2013
Q: on your FORD AOD to Dana 20 Adapter from what vehicle would work best and does the transmission have to be a 4x4 transmission?
thank you
⮞ 1 Answer
Answered by ☆ WH tech - May 14, 2013
A: 1980 and newer Ford 4x4s including trucks and Broncos. it does need to be a 4x4 transmission. This kit works for AOD, AODE and 4R70W.
