Assembled Extreme Duty Dana 20 Transfer Case Output System SKU: 8280
Assembled Extreme Duty Dana 20 Transfer Case Output System
Assembled Extreme Duty Dana 20 Transfer Case Output System
Product Overview:
Our completely assembled ready to bolt in Extreme duty Dana 20 output system makes replacing your 20's old output shaft a breeze. This unit is roughly 1.3" longer than the stock output so it is possible that the rear driveshaft will need to be shortened.
Full description
Our completely assembled ready to bolt in Extreme duty Dana 20 output system makes replacing your 20's old output shaft a breeze. This unit is roughly 1.3" longer than the stock output so it is possible that the rear driveshaft will need to be shortened.
Our completely assembled ready to bolt in Extreme duty Dana 20 output system makes replacing your 20's old output shaft a breeze. This unit is roughly 1.3" longer than the stock output so it is possible that the rear driveshaft will need to be shortened. Don't forget to choose one of the speedometer connection options when ordering.

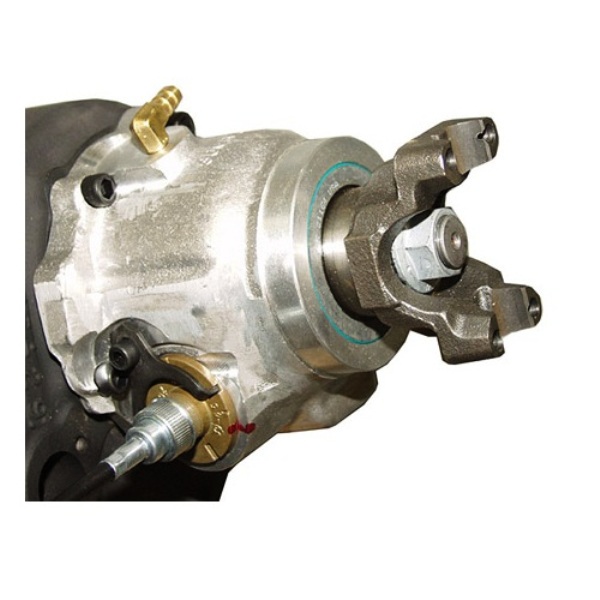

This System is designed for those who use a GPS Speedometer and does NOT include the speedometer gear, speedometer housing, nor the speedometer cable shown in the picture. If you plan to use a mechanical or digital speedometer, please order the Complete System.
Want something different than the 1310 CV yoke? Give us a call, we have 1310 and 1350 NON-CV as well as 1350 CV and 1350 CV Flanges.
This System is designed for those who use a GPS Speedometer and does NOT include the speedometer gear, speedometer housing, nor the speedometer cable shown in the picture. If you plan to use a mechanical or digital speedometer, please order the Complete System.
Want something different than the 1310 CV yoke? Give us a call, we have 1310 and 1350 NON-CV as well as 1350 CV and 1350 CV Flanges.
Instruction 1
California residents: Proposition 65 Warning
Q&A
Have a question? Click Here to submit your question.
Asked by Ricky, January 25, 2022
Q: What is the spline count on the yoke?
⮞ 1 Answer
Answered by ☆ sales - January 26, 2022
A: The yoke and shaft have 32 splines.
Asked by Rich, January 3, 2021
Q: Does this have the gear on the output shaft to drive a speedometer gear if one would be added later?
⮞ 1 Answer
Answered by ☆ sales - January 4, 2021
A: Yes, the speedometer drive gear is in place on the shaft. The speedometer components can be added from the outside later.
Asked by dan, October 25, 2020
Q: Does this still have to hole for speedo parts down the road if i want to add them later?
⮞ 1 Answer
Answered by ☆ sales - October 26, 2020
A: Yes, the housing will have the speedometer hole, with a plug in it. You may remove the plug and add the speedometer parts later if you wish.
Asked by Steve, October 5, 2020
Q: Does the tcase have to be dropped to install this?
⮞ 1 Answer
Answered by ☆ sales - October 5, 2020
A: No, the t-case does not normally need to be removed.
