4.5 inch Lift Kit, System 16 w/Bilstein Shocks, 66-77 Ford Bronco SKU: 0116BL4-5N
4.5 inch Lift Kit, System 16 w/Bilstein Shocks, 66-77 Ford Bronco
Product Overview:
Our Super Performance Suspension System is designed with one shock per corner and gives you the basic items needed for great articulation off-road while being well suited for street use.
Full description
Early Bronco 4.5-Inch Long Travel Suspension Lift Kit
Includes Bilstein 5100 Series Shocks
Elevate your 66-77 Ford Bronco's off-road performance and street handling with our 4.5-Inch Suspension Lift Kit featuring Bilstein Shocks. This comprehensive lift kit includes everything you need for great articulation and a smoother ride, whether you're tackling rugged trails or cruising the streets.

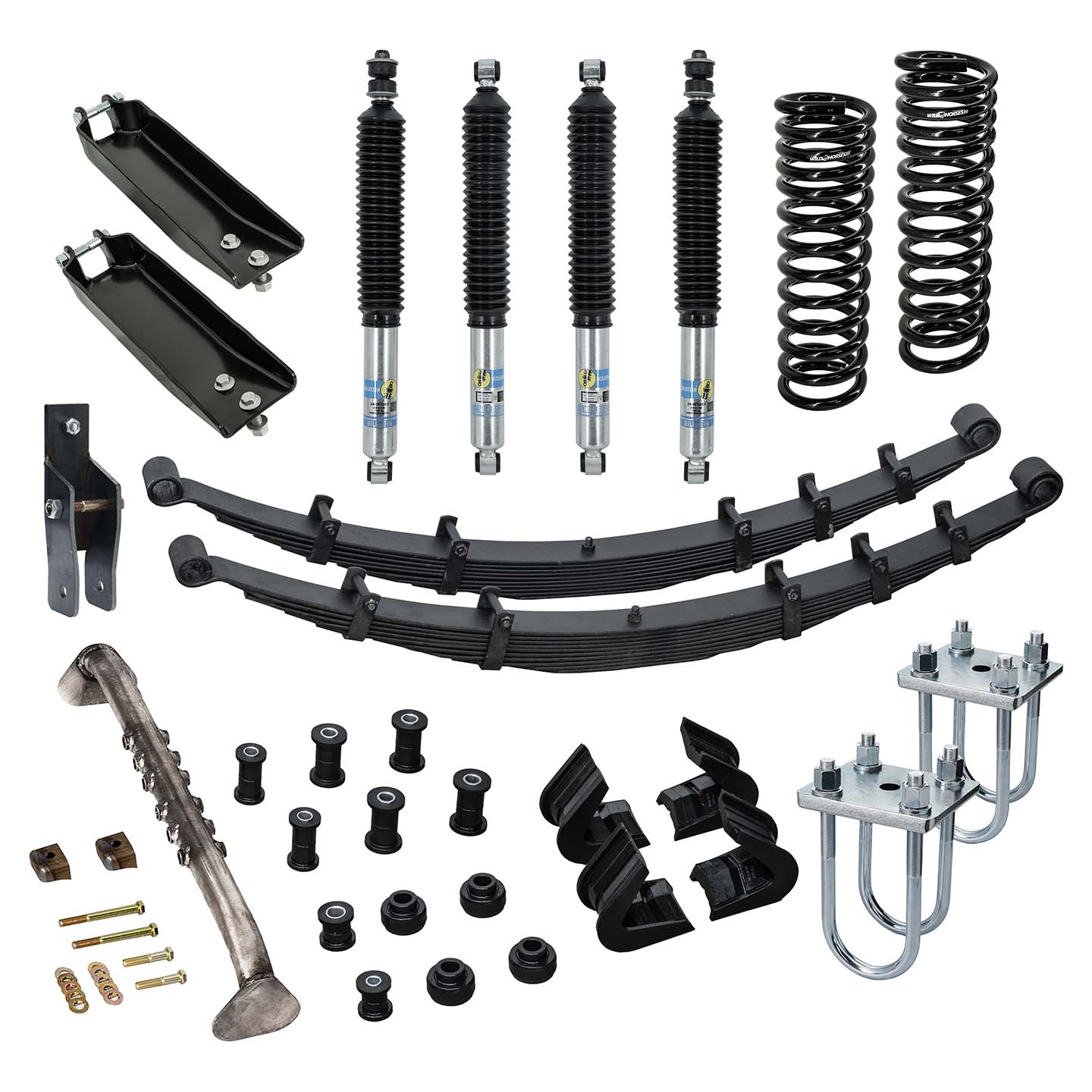

Lift Kit Includes:
- Bilstein 5100 Series Shocks with Boots: This lift is designed to mount one shock per corner, offering superior damping for both off-road and on-road use. The Bilstein 5100 series shock is for good reason the most popular shock around for early Bronco lifts.
-
WILD HORSES All-Terrain 4.5-inch Front Coils: Available in black, red, blue, or silver to match your Bronco’s style. The WH All-Terrain coils springs offer the perfect blend of soft ride and steady support so you can tackle any terrain.
-
14-Piece Front End Bushing Kit: Ensures tight, responsive steering and suspension. This kit includes degreed C-Bushings that ensure the proper caster correction needed when lifting your early Bronco.
-
Long Travel Shock Towers: These weld-on front shock towers allow for the installation of longer travel shocks, ensuring maximum suspension articulation.
-
WILD HORSES 11-Pack 4.5-inch Rear Leaf Springs: Custom made for the classic Bronco, WH Leaf Springs provides a smoother ride with better load handling when compared to the alternatives.
-
Rear Spring and Shackle Bushing Kit: Ensures your spring shackles and new leaf springs are mounted securely to enhance the stability of your ride.
-
Rear Inboard Shock Hoop: This weld-in shock hoop spans the inside of the frame rails, and provides multiple shock mount options. This mounting system allows for longer travel as compared to using the stock rear shock mounts.
-
U-Bolts: Strong and reliable, designed to keep your suspension solid. U-bolts stretch and become weaker over time, so we always recommend installing new u-bolts any time you are putting in a new set of rear leaf springs.
RECOMMENDED UPGRADE OPTION:
-
Extreme Duty U-Bolt Kit: Upgrade to our Extreme Duty U-Bolt Kit. This kit is highly recommended for serious off-roaders and rock crawlers, providing added strength and durability over stock U-bolts.
Take your Bronco's performance to the next level with our 4.5-Inch Suspension Lift Kit with Bilstein Shocks. Whether you're an off-road enthusiast or just want a smoother ride on the street, this kit provides the perfect balance of capability and comfort. Order yours today and experience the difference!
Watch Your Caster Angle
The caster angle is defined as the number of degrees backward (positive) or forward (negative) of the tilt of the king pins (Dana 30) or ball joints (Dana 44) in relation to a vertical line through the center of the front end.
Caster correction on lifts over 3.5"
These are our observations from years of building early Broncos. We know there are always exceptions to the rules, but we have noticed about 90% of Broncos with wandering problems are the result of incorrect caster. The specification for Bronco caster is +4 to +9 . When the Bronco is lifted, the caster will move in the negative direction. Properly installed degreed C-bushings will move the caster back in the positive direction. Because of the caster issue about 50% of Broncos going to a 4.5" lift and most Broncos going to a 5.5" lift will need more caster correction than the standard 7 degree C-bushing. The additional correction can be addressed in a number of ways. These three are the most common.
1. Radius arm drop brackets: Only drawback with this method is the unavoidable loss of ground clearance.
2. Long radius arms: This is the most common method of correcting caster on taller lifts. Advantages include maintaining ground clearance, additional articulation off-road and improved handling.
3. Bending the stock radius arms: We know this is old school, but long before degreed C-bushings people were lifting Broncos and bending the stock arms to achieve good caster.
WE RECOMMEND upgrading the stock diameter U-bolt kit included in this system to our Extreme Duty U-Bolt Kit for only $50.
The force and stress placed on stock components by off-roading is enormous. We noticed that we were bending the stock u-bolt plates so we set out to build some that could take abuse. We also noticed the stock 1/2" u-bolts are pretty weak. It may seem kind of simple to take a piece of thick metal and drill some holes. We have seen those types of plates. The problem is the edge of a plate like this causes a ridged pressure point and can cause the spring to break at that point. We invested in tooling that routers the edge of our plates. In doing so we are able to keep a stock type edge which compliments the spring when it's articulating. These are a must have for trail runners and rock crawlers. Keep your rear axle and springs mounted solid!
You will need to add a drop pitman arm (see below) to keep the draglink and trac bar in alignment unless you already have one or are using the inside of the frame F100 2WD steering box conversion. Call us if you have any questions.
1966 Bronco owners please be aware you may need to add rear shock mounts to your kit.This kit is designed for shocks that use eye/eye mounts. Some 66 Bronco use stud/eye mounts on the rear. The shocks in this kit are not compatible with the stud/eye mount. Just add the Rear Shock Mounts (#1451) below to solve this issue.
