M1A1 Stainless 23-gallon EFI Fuel Tank w/In-Tank Pump & Skid Plate SKU: 9664SKNET
M1A1 Stainless 23-gallon EFI Fuel Tank w/In-Tank Pump & Skid Plate
M1A1 Stainless 23-gallon EFI Fuel Tank w/In-Tank Pump & Skid Plate
Product Overview:
CAPACITY: 23 Gallons/87 Liters
CONSTRUCTION: 14 GA Stainless steel, tig welded
BULLET PROOF: 3/16 inch thick form fitting skid plate
ADJUSTABLE: Fits 0-3 inch body lift
GROUND CLEARANCE: Maximized by design
FUEL INJECTION READY: High pressure pump included
Full description
CAPACITY: 23 Gallons/87 Liters
CONSTRUCTION: 14 GA Stainless steel, tig welded
BULLET PROOF: 3/16 inch thick form fitting skid plate
ADJUSTABLE: Fits 0-3 inch body lift
GROUND CLEARANCE: Maximized by design
FUEL INJECTION READY: High pressure pump included
CONSTRUCTION: 14 GA Stainless steel, tig welded
BULLET PROOF: 3/16 inch thick form fitting skid plate
ADJUSTABLE: Fits 0-3 inch body lift
GROUND CLEARANCE: Maximized by design
FUEL INJECTION READY: High pressure pump included

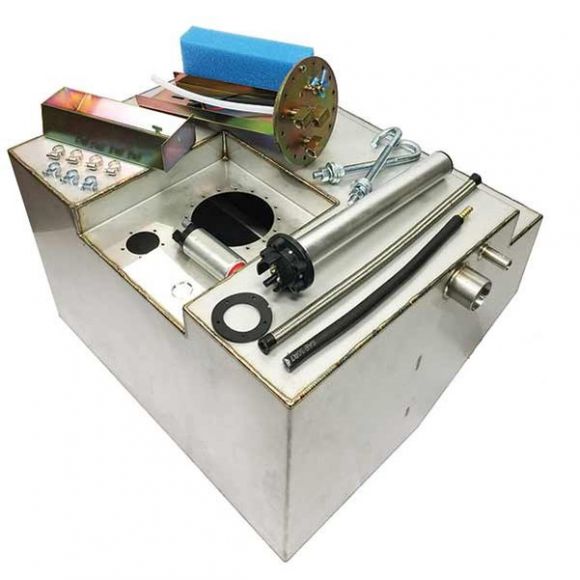

WH has moved the Early Bronco fuel tank into the modern era.
The M1A1 is made from 14 gauge stainless steel. Leave the rust worries behind.
You won't see the typical waves and distortion found on most after market Bronco tanks on the M1A1 Our welders are true artists. The craftsmanship is second to none on these fully tig welded tanks.
A convenient drain plug is located on the side of the tank.
The M1A1 is secured under your Bronco with a pair of custom made heavy duty candy cane bolts and a stainless steel strap.
You can opt for the 3/16" thick armor skid plate With its side and bottom protection this form fitting skid plate can take a beating while creating an impenetrable shied for your tank against menacing trail boulders.
The M1A1 fuel pick up module can be used with or without an in-tank fuel pump. We've made it easy to swap out later if your needs change. The module provides ports for fuel supply, fuel return and venting.
Fuel capacity is 22-23 gallons so you won't have to worry on those longer excursions.
The new Isspro sending unit is a custom made just for the M1A1.
The M1A1 design optimizes ground clearance which also gives a much more stealthy look from behind than previous versions.
The M1A1 is made from 14 gauge stainless steel. Leave the rust worries behind.
You won't see the typical waves and distortion found on most after market Bronco tanks on the M1A1 Our welders are true artists. The craftsmanship is second to none on these fully tig welded tanks.
A convenient drain plug is located on the side of the tank.
The M1A1 is secured under your Bronco with a pair of custom made heavy duty candy cane bolts and a stainless steel strap.
You can opt for the 3/16" thick armor skid plate With its side and bottom protection this form fitting skid plate can take a beating while creating an impenetrable shied for your tank against menacing trail boulders.
The M1A1 fuel pick up module can be used with or without an in-tank fuel pump. We've made it easy to swap out later if your needs change. The module provides ports for fuel supply, fuel return and venting.
Fuel capacity is 22-23 gallons so you won't have to worry on those longer excursions.
The new Isspro sending unit is a custom made just for the M1A1.
The M1A1 design optimizes ground clearance which also gives a much more stealthy look from behind than previous versions.
Instruction 1
California residents: Proposition 65 Warning
Q&A
Have a question? Click Here to submit your question.
Asked by Brent, October 15, 2023
Q: In reading the answer to a previous question, it sounds like the included fuel pump runs at 90 psi. But the Edelbrock Pro-Flo 4 system requires 43-45 or 58-60 psi. Is the included fuel pump pressure adjustable, or, is there an option to order the M1A1 tank with a fuel pump that is compatible with the PF4 system to avoid using a fuel pressure regulator?
⮞ 1 Answer
Answered by ☆ sales - October 16, 2023
A: You will need to use an external pressure regulator to dial back the pressure. Something like #6662 or 6669. We do not offer a lower pressure pump.
Asked by SW, September 12, 2023
Q: Working on a build that will have a 5.5 in. lift. Noted in the specs that this works with up to 3 in. lift. Will any special modifications be needed to use this tank (including skid plate) with 5.5 in. lift?
⮞ 1 Answer
Answered by ☆ sales - September 15, 2023
A: When we mention the 3, that would be a body lift, stock mounts up to 3 body lift. It will work with anything from stock to 5.5 of suspension lift. We expect no issue.
Asked by Anonymous, April 2, 2023
Q: I have a MagnaFlow dual exhaust system from CJ Pony Parts with the X pipe and 2 1/2 mandrel bent pipe exiting behind the rear wheels. Is there any known interference issues with this tank?
⮞ 1 Answer
Answered by ☆ sales - April 4, 2023
A: We have heard of some interference with exhaust coming straight out the back. We are not aware of any issue with a side exit, but either way, it really just depends on the exhaust install and routing.
Asked by Chris BeLieu, September 28, 2022
Q: Overall height, width, and depth measurements, please! Thanks!
⮞ 1 Answer
Answered by ☆ sales - September 28, 2022
A: The tanks outside dimensions are 22 3/4 wide, x 20 1/2, front to back, x 14 1/4 tall, measured with a tape measure, rounding up to the nearest 1/8.
Asked by Lee, June 13, 2022
Q: I just ordered the new tank, can't wait to get it installed! What size is the fuel supply line?
⮞ 1 Answer
Answered by ☆ sales - June 13, 2022
A: The tank comes with 5/16 barbed fittings for supply and return if needed, as well as a 3/16 barbed fitting to vent.
Asked by Greg Betz, September 19, 2021
Q: What size fuse should I use on the fuel pump circuit?
⮞ 1 Answer
Answered by ☆ sales - September 20, 2021
A: We would use a 20 amp fuse for the fuel pump.
Asked by Andy, March 11, 2021
Q: What is the thread for the barbed fittings where they screw into the module?
⮞ 1 Answer
Answered by ☆ sales - March 12, 2021
A: The barbed fittings are 1/4 NPT.
Asked by Jon Mathew Armstrong, January 26, 2021
Q: can this tank be used with a carburetor with the in tank fuel pump? I have intentions of doing efi, just not immediately. Or would i be better with the non in tank pump version until i do efi?
⮞ 1 Answer
Answered by ☆ sales - January 29, 2021
A: Not normally, but, you may be able to add a pressure reducing valve and return line setup and accomplish that. The EFI pump is capable of 90 - 110 psi. Most 4 barrel carbs only require 4-7 psi. You will be moving way more fuel than you will need, and have to find a Pressure reducing valve to do it. Or find a low pressure equivalent. Depending on your EFI choice, you may need a PRV eventually anyway. Or, get the tank for carb, and get the pump kit when you need it, #9667.
Asked by Larry, December 18, 2020
Q: Should the skid plate be painted? Also, what are the two tabs with holes that are in the front of the plate for?
⮞ 1 Answer
Answered by ☆ sales - December 22, 2020
A: The skid plate should be painted or coated. It is regular mild steel, and not stainless and will rust. The holes are not for any specific purpose, and are just part of the current design.
Asked by Jeffrey Wilkins, November 15, 2020
Q: I am doing a frame off of a 75 Bronco. I will be running a Blueprint 306 w/Sniper. Do I need to run a tank vent on this application. If so how?
⮞ 1 Answer
Answered by ☆ sales - November 16, 2020
A: You will at the very least want a vented gas cap. If you can tie into your original, if still in place, vent system, that would be good. Otherwise, some will run a vent hose with a check valve up into the tail-light housing. To allow air in, but not fumes or fuel out.
Asked by Gary Richey, September 24, 2020
Q: What size hose does the filler take?
⮞ 1 Answer
Answered by ☆ sales - September 24, 2020
A: The M1A1 takes a 1.75 fill hose.
Asked by Anonymous, August 21, 2020
Q: What is the availability of this tank? Thanks
⮞ 1 Answer
Answered by ☆ sales - August 21, 2020
A: The tank is normally kept in stock. It is best to call for the latest stock update, as there are some individual parts involved.
Asked by EE, May 24, 2020
Q: I am trying to setup my fuel gauge. What is the ohms at empty and at full for this tank?
⮞ 1 Answer
Answered by ☆ sales - May 26, 2020
A: The Ohm range is approximately 10 ohm at Full to 75 ohm Empty. The original Ford gauges vary greatly so we took a range of gauges in order to come up with the
settings for our sending units.
Asked by KW, April 30, 2020
Q: Does this tank work with a trailer hitch?
⮞ 1 Answer
Answered by ☆ sales - May 1, 2020
A: It can. You cannot have anything mounted to the inside of the frame. You may review the installation instructions for reference, and see how your hitch is mounted.
Asked by Anonymous, November 26, 2019
Q: do you have a EFI in tank gas tank that isn't stainless?
⮞ 1 Answer
Answered by ☆ sales - December 4, 2019
A: We do not. Stainless is our only option other than stock at this time.
Asked by Richard Smith, September 13, 2019
Q: What's the difference between 9664stnet and 9664sknet ? Thanks, Rich.
⮞ 1 Answer
Answered by ☆ sales - September 13, 2019
A: The 9664ST comes with a strap for mounting. #9664SK uses a skid plate to mount the tank, replacing the strap.
Asked by Anonymous, April 11, 2019
Q: How many GPM is the pump rated for, verses the other 23 gallon tank.
⮞ 1 Answer
Answered by ☆ sales - April 11, 2019
A: Both the Sherman Tank and M1A1 Tank use the same style pump, rated at 67GPH/255LPH at approximately 90 PSI.
