2-degree Front End Bushings Kit (14 pc), 66-77 Ford Bronco SKU: 1297

2-degree Front End Bushings Kit (14 pc), 66-77 Ford Bronco

2-degree Front End Bushings Kit (14 pc) 66-77 Bronco

Product Overview:

Solidify the front end of your early Bronco with this 2-Degree Front End Bushings Kit. Designed for stock or slightly lifted Broncos, this kit ensures your vehicle maintains optimal drivability & handling. With high-quality urethane bushings & zinc-plated sleeves, your Bronco will stay smooth & controlled.

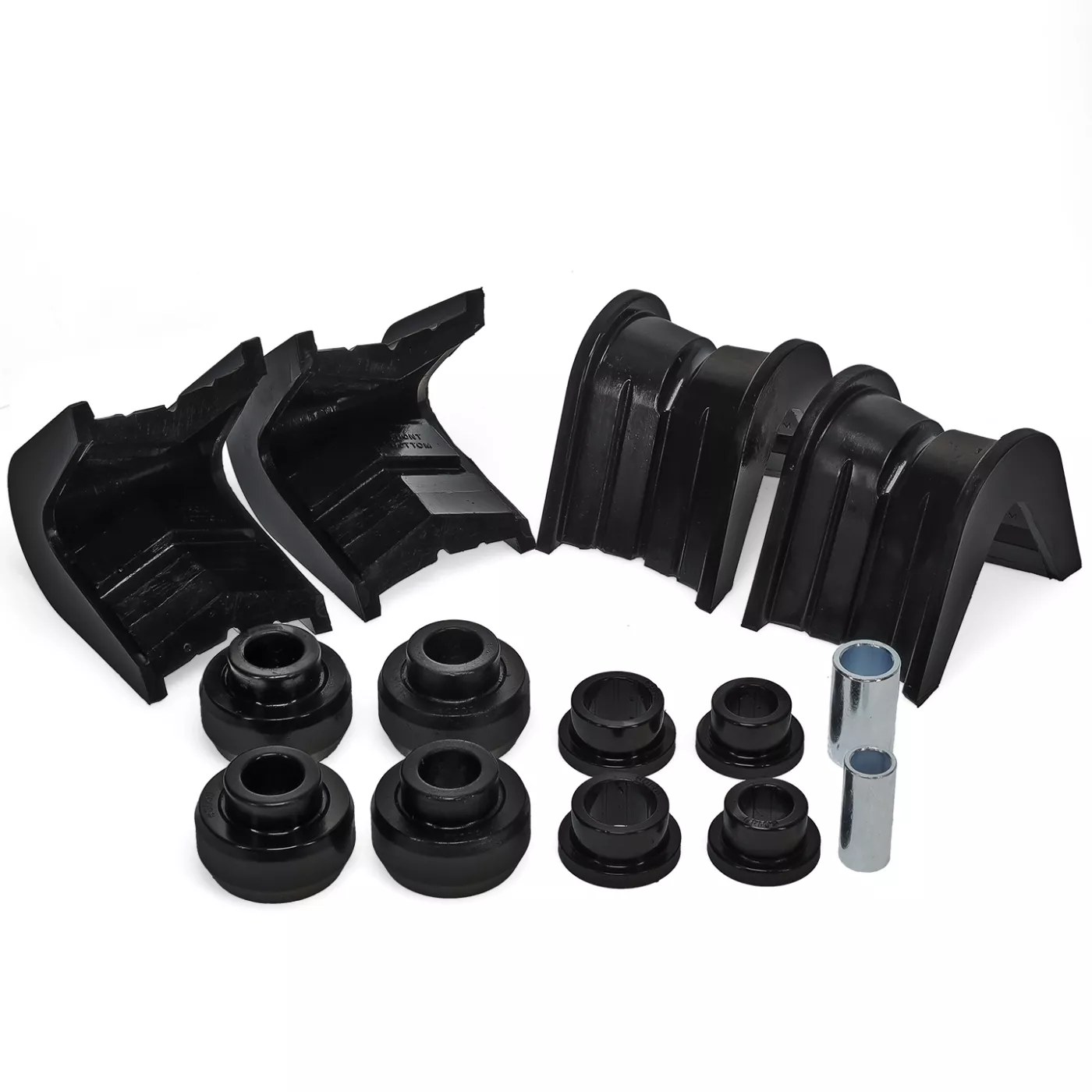

What's Included:

Strut/Radius Arm C-Bushings (4)
Rear Strut/Radius Arm Bushings (4)
Track Bar Bushings (4)
Track Bar Sleeves (2)

Full description

What's Included:

Strut/Radius Arm C-Bushings (4)
Rear Strut/Radius Arm Bushings (4)
Track Bar Bushings (4)
Track Bar Sleeves (2)

Early Bronco 2-Degree Front End Bushings Kit

Upgrade your stock or slightly lifted Early Bronco with this 2-Degree 14-Piece Front End Bushings Kit, designed to enhance drivability and maintain control. This comprehensive kit is perfect for stock-height Broncos or those with radius arms that already have caster adjustment built in.

High-Quality Materials: Features durable urethane bushings for long-lasting performance, with zinc-plated sleeves for superior corrosion resistance.
Optimized Caster: The 2-degree C-bushings are ideal for stock Broncos, ensuring the proper caster angle for optimal drivability. (Note: We offer C-bushings with 2, 4, and 7-degree caster adjustments, depending on your lift setup.)
Improved Handling: Replacing track bar and radius arm bushings can significantly improve handling, especially under the stress that these components endure over time.
Perfect Fit: Designed to fit seamlessly into your Early Bronco's front end, making installation straightforward and effective.

What's Included:

4 C-bushings
4 Strut/Radius Arm Bushings
4 Track Bar Bushings
2 Sleeves

Whether you're restoring your Bronco or looking to maintain its legendary performance, this 2-Degree Front End Bushings Kit has you covered. Order yours today and keep your ride smooth and controlled on any terrain!

California residents: Proposition 65 Warning

Q&A

Please Sign In if you have a question or want to post an answer.

Asked by Anonymous, September 21, 2022

Q: Hello, what are strut/radius and what is the trac bar? I'm a rookie Bronco owner.

⮞ 1 Answer

Answered by ☆ sales - September 21, 2022

A: The strut/radius bushings are for the radius arms, one arm on each side of the front end and Bronco. These go on the end at the frame brackets, under the doors. The trac bar is the long bar at the front end, going side to side, from the driver side frame bracket, to the passenger side axle bracket.

NEED HELP? Talk to a BRONCO expert today! (209) 400-7200

PRODUCT REVIEWS

PHILIP HANEBUTT

Reviewed 07/31/2018

I ordered this kit on a Sunday evening and it arrived on Wed...super fast shipping. I had watched a number of video which showed how to install bushing set, especially the C bushings and track bar bushings and it was pretty straight forward. after setting the front of the frame on jackstands and removing the front wheels, I removed the springs and unbolted the bottom of the shocks, leaving them hang in place. I then placed concrete blocks and short lengths of 2x4 under the hubs to maintain the axle / radius arms at a neutral angle to the frame. after unbolting the radius arms from the axle I was able to roll the axle forward, hubs on the 2x4s, to achieve enough space to remove the radius arms from the frame. I did not need to disconnect the front drive shaft being careful to not move the axle so far that it separated the driveshaft. The most time consuming part of the job was removing the built up rust / scale from the radius arm, clamp and axle so the new C bushing fit right. Got it all back together and it drives 100% better...and no bronco "lean". Very happy with how it all fit and worked out. Minor complaint is that the rear radius arm / frame bushings did not come with the large washers and cotter pins. Fortunately I had a new set. Other than that, 5 stars.

Mac

Reviewed 05/13/2017

Quality products. Arrived on time. With the help of wild horses video the install wasn't terrible either.

Andy

Reviewed 04/25/2016

I am a DIY Bronco builder and have no problem making my own parts when necessary, but always rely on WH when I need specific parts. I proudly display the WH sticker on my early bronco and recommend them for any Bronco needs!

Bill Burkeen

Reviewed 03/25/2013
