Custom 1-inch Body Lift Kit, 66-77 Bronco SKU: 1910

Sale! Custom 1-inch Body Lift Kit, 66-77 Bronco

Custom 1-inch Body Lift Kit, 66-77 Bronco

Custom 1-inch Body Lift Kit 66-1977 Bronco
Free Shipping!
Purchase Custom 1-inch Body Lift Kit, 66-77 Bronco
$169.99 Was: $179.99 SKU: 1910
Fits 66-77 Ford Bronco
84 Reviews

Product Overview:

1 inch Body Lift Kit
Body lifts are an easy way to gain clearance for larger tires without going to excessive suspension lifts and creating extreme drive shaft angles. The body lift also helps to maintain a better center of gravity which means less body roll when cornering. Another reason for using a body lift is to add clearance needed for some transmission/transfer case swaps.

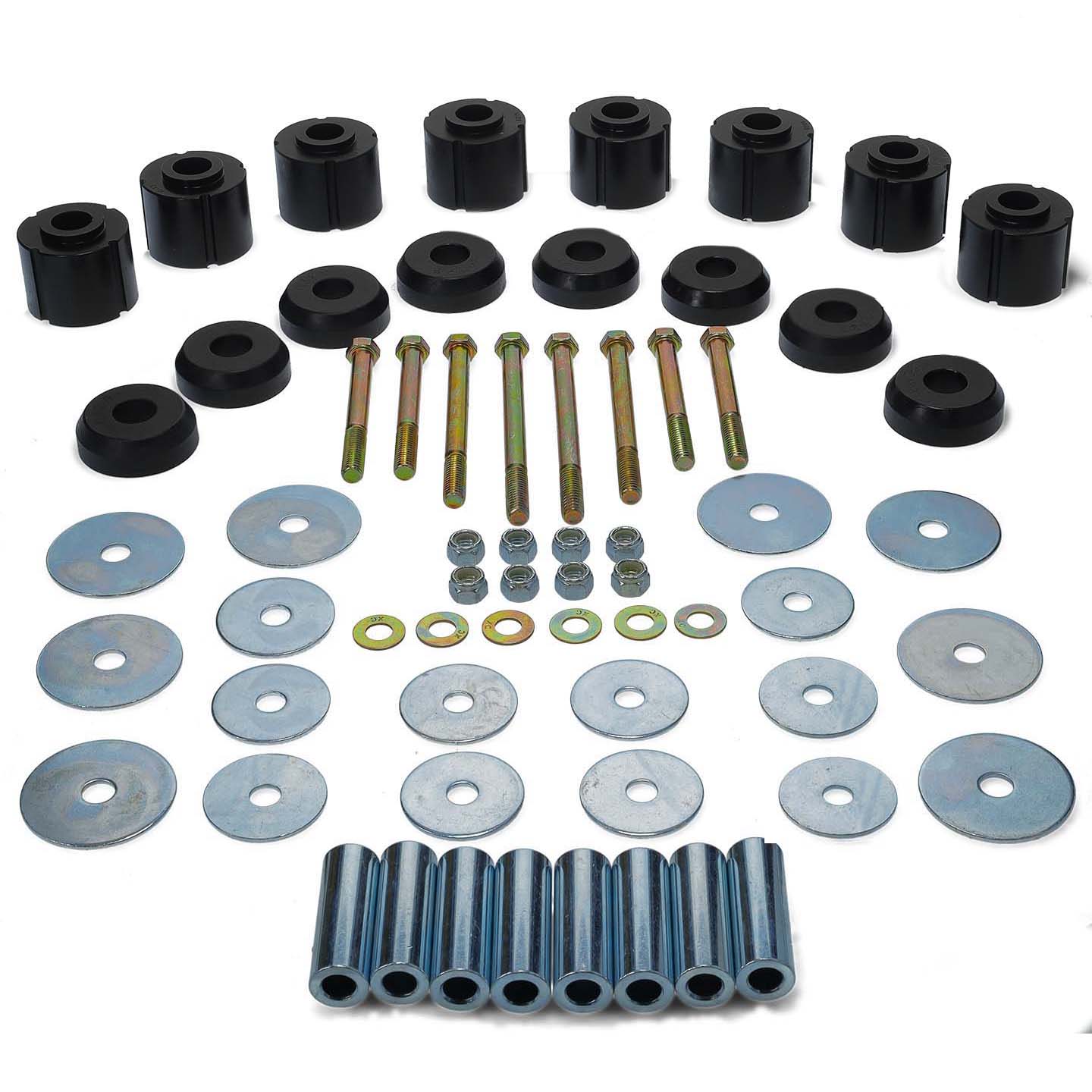

WILD HORSES body lifts feature mounting hardware consisting of 7/16" grade 8 bolts and all the correct size thick cad plated washers and cad plated thick mount inserts to prevent over tightening. The 1" kit uses taller urethane body mounts with no added block for those who want just a little extra clearance.

WH body hardware kits are designed for use with stock steel bodies. Some bolts may or may not fit modified steel bodies and may or may not fit some fiberglass bodies.

Free Shipping Image
FREE SHIPPING to anywhere in the 48 contiguous states. The shipping charge for this item will have already been deducted from the shipping charge in checkout. Customers outside the 48 states will be contacted with shipping charges for approval prior to shipping.
NOTE: For non-defective returns, original shipping costs incurred by Wild Horses will be deducted from any refunds. Customers responsible for any return shipping costs incurred.

Full description

1 inch Body Lift Kit
Body lifts are an easy way to gain clearance for larger tires without going to excessive suspension lifts and creating extreme drive shaft angles. The body lift also helps to maintain a better center of gravity which means less body roll when cornering. Another reason for using a body lift is to add clearance needed for some transmission/transfer case swaps.

WILD HORSES body lifts feature mounting hardware consisting of 7/16" grade 8 bolts and all the correct size thick cad plated washers and cad plated thick mount inserts to prevent over tightening. The 1" kit uses taller urethane body mounts with no added block for those who want just a little extra clearance.

WH body hardware kits are designed for use with stock steel bodies. Some bolts may or may not fit modified steel bodies and may or may not fit some fiberglass bodies.

Early Bronco 1-Inch Body Lift Kit

Gain the clearance you need for larger tires or a custom transmission with the Early Bronco 1-Inch Body Lift Kit from WILD HORSES. This kit is an excellent way to enhance your Bronco’s performance and appearance without resorting to excessive suspension lifts.

66-77 Ford Bronco 1" Body Lift Features:

  • Improved Clearance: Provides the necessary space for larger tires, reducing the need for extreme suspension lifts that can create severe drive shaft angles. Also great for installing a larger transmission such as the AX15 or Tremec TR4050.

  • Enhanced Stability: Helps maintain a better center of gravity, reducing body roll when cornering for a smoother, safer ride.

  • High-Quality Components: Features 7/16" grade 8 bolts, thick cad-plated washers, and cad-plated thick mount inserts to prevent over-tightening.

  • Durable Urethane Mounts: The 1" kit uses taller urethane body mounts with no added block, perfect for those seeking just a bit more clearance.

Installation Note:

  • Designed for Stock Steel Bodies: The kit is designed for use with stock steel bodies. Some bolts may or may not fit modified steel bodies and certain fiberglass bodies.
  • Additional Considerations: Additional modifications generally required when adding a body lift include lengthening shift rods, fuel filler hose and clutch push rod. Also modifying the fan shroud.

Upgrade your 66-77 Ford Bronco with the WILD HORSES 1-Inch Body Lift Kit. Order now to enjoy improved tire clearance, enhanced stability, and the extra room needed for your transmission or transfer case swap!

pdf-file

Instruction 1

Review Custom 1-inch Body Lift Kit, 66-77 Bronco

California residents: Proposition 65 Warning

Q&A

Have a question? Click Here to submit your question.
Know the answer? Add it here.


Your question will be published after review.


Asked by Chad, May 21, 2023

Q: Is this taller than stock? By how much?

1 Answer

Answered by sales - May 24, 2023

A: The stock body mount is a 3/4 thick bushing. The 1 body lift bushing measures 1 3/4, making the the bushing 1 taller than stock.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Ran-D, May 11, 2023

Q: Will this help clear 33x12.5R15 tires with only a rear cut?

1 Answer

Answered by sales - May 24, 2023

A: Sure, a 1 body lift will help with clearance for tires, as well as in the engine compartment and transmission tunnel.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Anonymous, March 28, 2021

Q: Are there any additional modifications recommended with the 1 lift? Like steering shaft, fuel hose, etc. Your general information on body lifts is just vague enough to make extra modifications with the 1 option unknown.

1 Answer

Answered by sales - March 31, 2021

A: Usually there is enough adjustment and play in the Bronco, to allow a 1 BL without much or any extra. Things to consider, fan in relation to the radiator and shroud, clutch or shifter adjustment, and adjusting column, or replacing lower shaft. It is normally case by case on what is needed.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Dan, February 25, 2021

Q: Does this kit come with the prothane grease for the bushings?

1 Answer

Answered by sales - February 26, 2021

A: No, we usually install the body mounts dry. You may use grease if you like, but it is not included.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Thomas, May 14, 2019

Q: Do you offer the 1 body lift with stainless hardware?

1 Answer

Answered by sales - May 14, 2019

A: No we do not. Our body lift kits come with zinc plated hardware.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Anonymous, February 19, 2017

Q: My friend says we should be putting a non-petroleum based lubricant on all of the bushings to prevent squeaking. If so what type of product do you recommends?

1 Answer

Answered by sales - February 23, 2017

A: Prothane Super Grease Teflon Based Suspension Bushing Lubricant.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Dave Klug, June 26, 2016

Q: Will your 1 body lift work on my 1978 Bronco? It seems like there should be little difference with the body mounts, but I figured I better ask the professionals. Thanks, Dave Klug

1 Answer

Answered by sales - June 27, 2016

A: It is only designed for the 66-77 Broncos.

Know the answer? Add it here.

Know the answer? Add it here.

Asked by Erik, December 18, 2015

Q: diy project or pros?

1 Answer

Answered by sales - December 29, 2015

A: Plenty of do it yourselfers tackle this project. It can be a pain getting the old bolts out.

Know the answer? Add it here.

Know the answer? Add it here.

PRODUCT REVIEWS
Dana DeJarnatt
Reviewed 07/06/2023
Kit received was good quality and installed just as described. I had to provide a couple of the small washers which wasn't a big deal.

Jerry Hodapp
Reviewed 02/01/2023
Looks nice haven't got to put it on yet

Wade Hedden
Reviewed 01/18/2023
I am very satisfied

Jerome A Kovatch
Reviewed 02/23/2022
Perfect

Landon Reneau
Reviewed 12/11/2021
Nice kit, easy to install. Had to cut the old ones out with a sawzall. Definitely helps with room for everything else without looking like there is a huge gap between body and frame.

Todd Henderson
Reviewed 07/05/2021
Excellent fit. Great instructions. Fit as expected. Pro Tip: For the mounts directly behind the seats, weld the nut to the washer. It will save you aggravation and eliminate the high probability that you'll drop a jamb nut into the frame through the hole that some Ford engineer thought was a good idea.

Chad Horne
Reviewed 03/22/2021
The 1" body lift fit perfect. Instruction are good.

Mike
Reviewed 01/05/2021
Items are as described, and will do exactly what I need them to do.

Randy VanGilder
Reviewed 12/14/2020
Nice brushing for the little lift makes it easier to get the things

vance leavitt
Reviewed 10/29/2020
Body lift worked great, no issues.

Greg Watkins
Reviewed 09/14/2020
Got it on time, and it was a easy product to put in. AND LOOKS GREAT!!!!!!

CLARENCE CATALDO
Reviewed 07/06/2020
fixed all my under hood clearance problems :)

Charles Meyer
Reviewed 06/11/2020
Changed my BL from a 2" to this 1". The design of the WH 1" BL makes for an easy install. Just helped a fellow EB owner install a competitors 1" BL and he and I both prefer the look of the WH product.

Joe Cardi
Reviewed 04/30/2020
Best Kit on the market. I use it on all my customers builds wanting a lift. The kit is complete fits great.

anthony adams
Reviewed 11/25/2019
Well built, looks good and makes the bronco look good. The only trouble I had was with the bushing behind the front seats. Tech tip, super glue the nut and washer together and slide the nut in a 11/16ths open end wrench then slide it under he bushing and have someone in the Bronco turn the bolt. Takes only a second and works well.

Jeff DeLaney
Reviewed 02/20/2020
Works great, great quality

Greg Chentnik
Reviewed 10/03/2019
As advertised, on time, with instructions that keep you from Loosing hardware inside the frame

Michael
Reviewed 07/22/2019
Quality product. Very happy with this 1" body lift. Not to difficult to install. Hardest part is removing the old mounts. Remove your rear bumper to access the rear mounts when installing.

Steve
Reviewed 06/02/2019
1970 u-15 Bought these a couple of months ago. Finally put the body back on the frame after replacing front end.. These 1" lift mounts are super quality. This restore is going to be done right. W.h is great. Fast shipping.

jim aguirre
Reviewed 05/04/2019
Great product, great service, great price. Can't get much better.

David Butscher
Reviewed 05/03/2019
This is a great kit. I'm new to working on vehicles and was able to easily install this kit. Just follow the instructions, watch some YouTube videos and you are set. Having access to two floor Jack's helps.

Jeff Thompson
Reviewed 05/29/2019
Why hasn't someone thought of this before? If your replacing you body bushings and want a little more clearance this is for you. High quality.

William Baird
Reviewed 04/03/2019
Great looking product. Fits frame holes great only wish there's an option of stainless washers and hardware living in North East Ohio is hell on steel.

Buckner
Reviewed 12/30/2017
Great product for years only 2 and 3 available love the 1 inch option

Darren McGhee
Reviewed 12/15/2017
Used before and they worked out great again. Thanks, Darren
