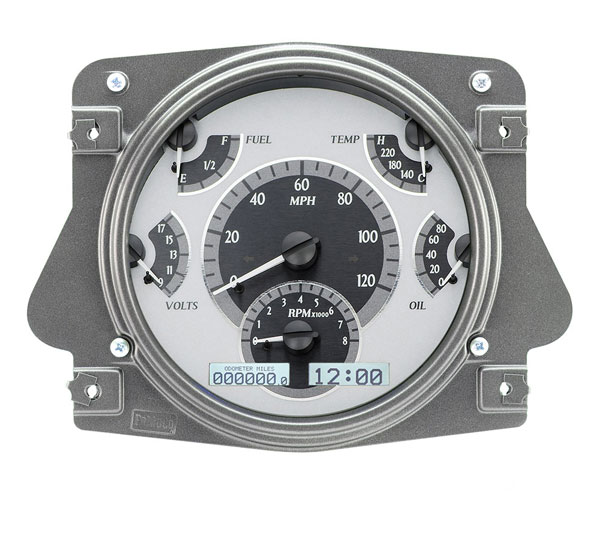

Dakota Digital Dash VHX Silver Alloy/White, 66-77 Ford Bronco, 61-66 Ford Truck SKU: 5985NET

The new VHX Systems fit directly into the stock instrument bezel of a 1966-77 Ford Bronco without modification.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday's traditional approach to instrumentation. A few of the features which you don't normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

Displays included with this instrument system:

• Speedometer: 0-120/140/160 MPH analog depending upon application, 0-255 MPH/KPH digitally in message center.
• Tachometer: 0-8,000 analog, 0-9,990 digitally in message center.
• Oil Pressure: 0-80psi analog and digitally.
• Water Temp: 140-220°F analog, 0-300°F/ 0-150°C digitally in message center.
• Voltmeter: 0-17VDC analog and digitally.
• Fuel Level: Empty- Full analog. 0-99% digitally in message center.
  Also shown in the digital message center:
  • Odometer
  • Trip Odometer (A&B)
  • Resettable Service Odometer
  • Clock
  • Hour-meter
  • 0-60 MPH (0-100 KPH) timer
  • ¼ mile timer
  • ¼ mile speed display
  • High Speed recall
  • High RPM recall

Various Indicators can also be displayed such as:

• Turn Signals
• High Beam
• Check Engine
• Parking Brake
• Cruise Control
• 4x4 (when equipped) displayed in message center.
• Wait to Start (when equipped) displayed in message center.

* Automatic Transmission gear indicator is also included which will display the full name (ie: Park, Overdrive, etc.) of the current gear.
* Utilizing the gear position indicator will require the use of a Dakota Digital GSS-2000 (sold separately) sending unit.
* Dakota Digital instruments systems also include a Demonstration Mode which will cycle the instrument readouts while the vehicle is standing still. This is especially popular while the vehicle is on display at a show, event or simply displaying the instrument system.
* Metric conversions will cycle between MPH or KPH in the digital message center with the press of a button. Full metric analog instrument systems (KPH & Celsius) are not currently available.
* Necessary sensors included for oil pressure (1/8" NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2" NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.
* Fuel level gauge can read either OEM sensor, or any aftermarket style currently available. A universal fuel level sender, SEN-06-1, can be purchased from Dakota Digital if necessary.
* Fully programmable speedometer for various tire sizes, rear-end gearing combinations, etc.
* Built-in illumination is activated as headlights/ parking lights are activated. The DIM-1 can be purchased from Dakota Digital to increase or decrease the brightness of the display. The DIM-1 is used in conjunction with your headlight switch.
* Fully adjustable warning points alert the user of potential vehicle problems in the digital message center
* One-time user settable odometer. This is available only within the first 100 miles of operation. Once exceeded, the mileage can be reset by Dakota Digital at a charge of $20.
