Custom Collapsible Lower Steering Shaft, 66-77 Ford Bronco SKU: 2161NET

Custom Collapsible Lower Steering Shaft, 66-77 Ford Bronco

Custom Collapsible Lower Steering Shaft 66-79 Bronco

Product Overview:

Upgrade your 66-77 Ford Bronco steering system with our Adjustable Lower Steering Shaft, designed for a precise fit and smooth operation. Whether you're replacing a worn-out shaft or correcting angles after a body lift, this high-quality, collapsible, and expandable shaft ensures optimal steering performance. Built in-house, each shaft features billet universal joints at both ends, stainless steel pinch bolt joints, and zinc plating for corrosion resistance. With a built-in lube and spring reservoir for lifetime lubrication, a dampening spring to reduce vibrations, and a rubber dust boot to keep contaminants out, this shaft is engineered for durability. Whether you need a bolt-in replacement or a custom-built shaft for a unique setup, we’ve got you covered. Reach out to our sales team for expert guidance!

Full description

Early Bronco Adjustable Lower Steering Shaft | 66-77 Ford Bronco

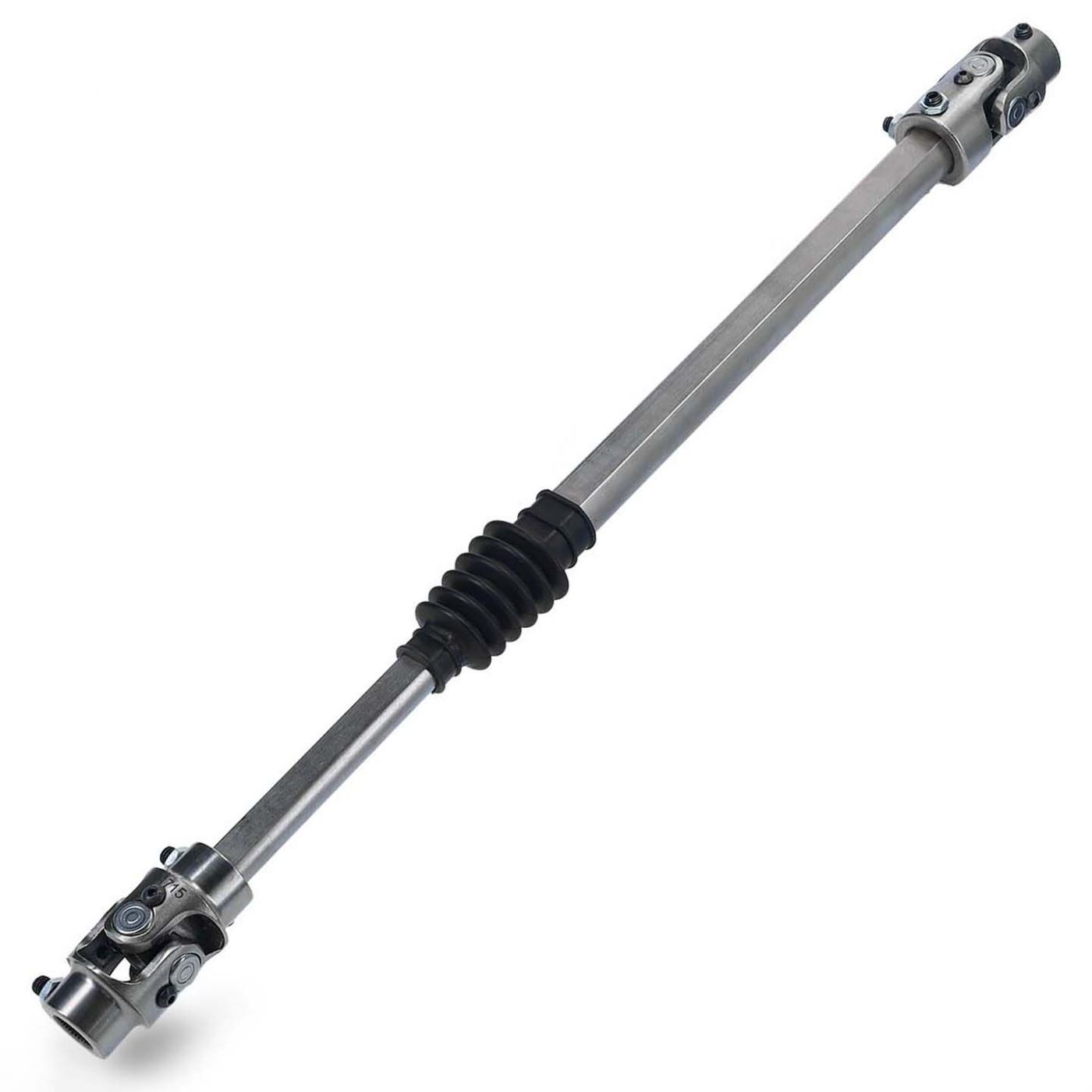

Upgrade your steering system with our Adjustable Lower Steering Shaft. Whether replacing a worn-out shaft or correcting angles after a body lift, this collapsible and expandable shaft ensures a precise fit and smooth operation. We build each of these shafts to order. Each custom shaft has two billet universal joints, one at each end. Our shafts are zinc plated for good looks and corrosion resistance. The special double D shaft is collapsible and expandable. We machine a lube and spring reservoir into the shaft to provide lifetime lubrication. A dampening spring is added to provide tension between the tube and shaft just like the factory 76-77 collapsible shafts. All shafts come with a rubber dust boot to help keep out contaminants.

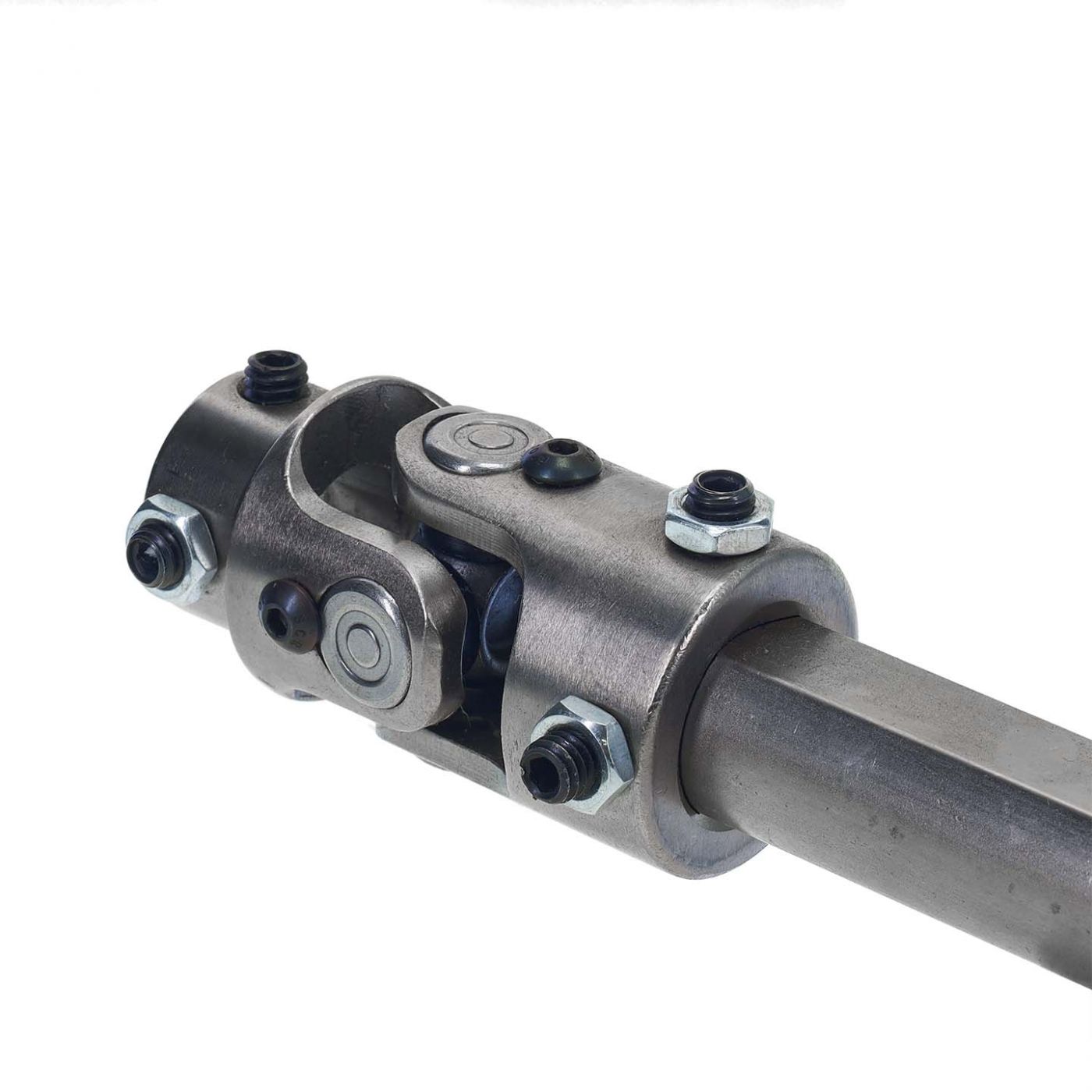

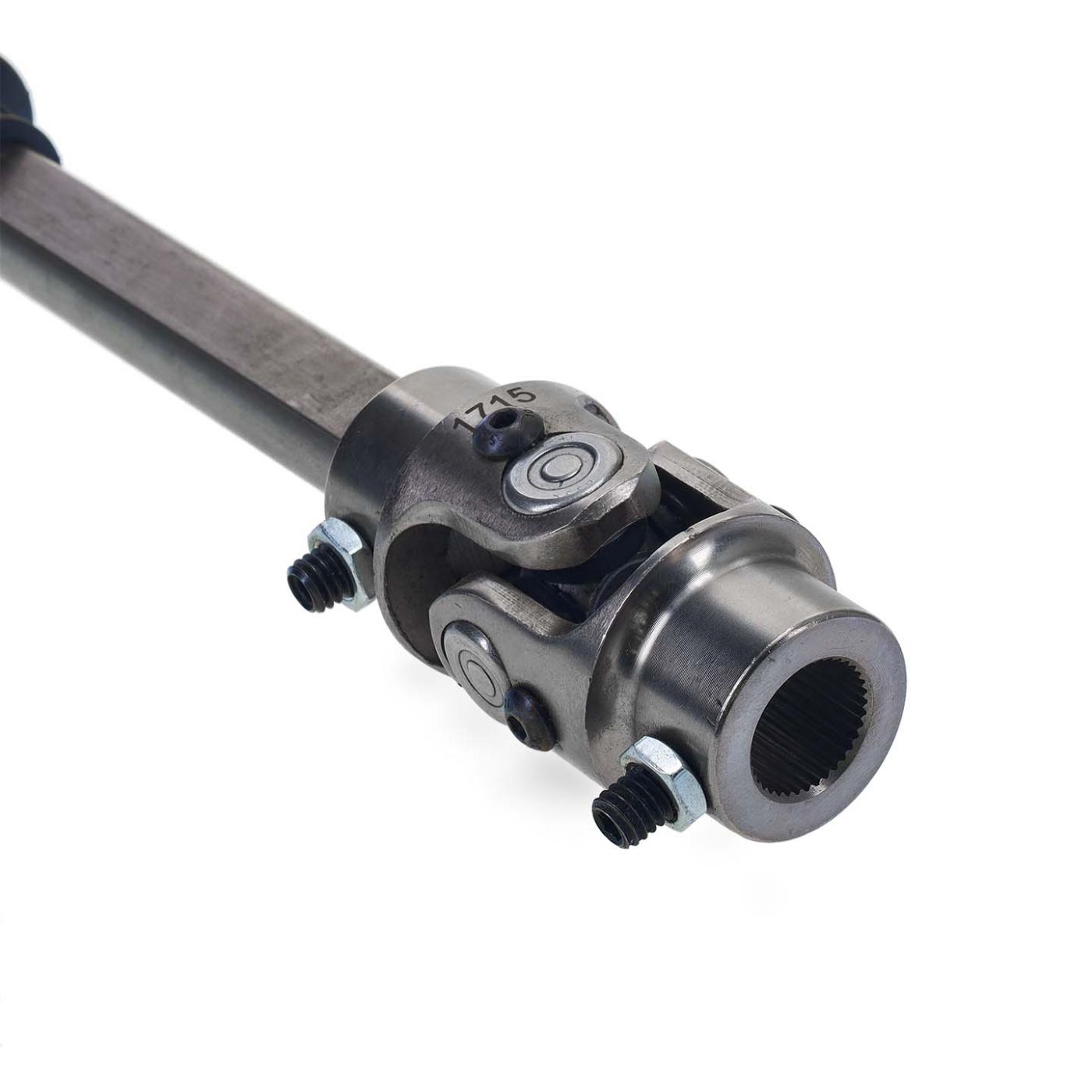

Premium Construction – Built in-house with billet universal joints at both ends and stainless steel pinch bolt joints.

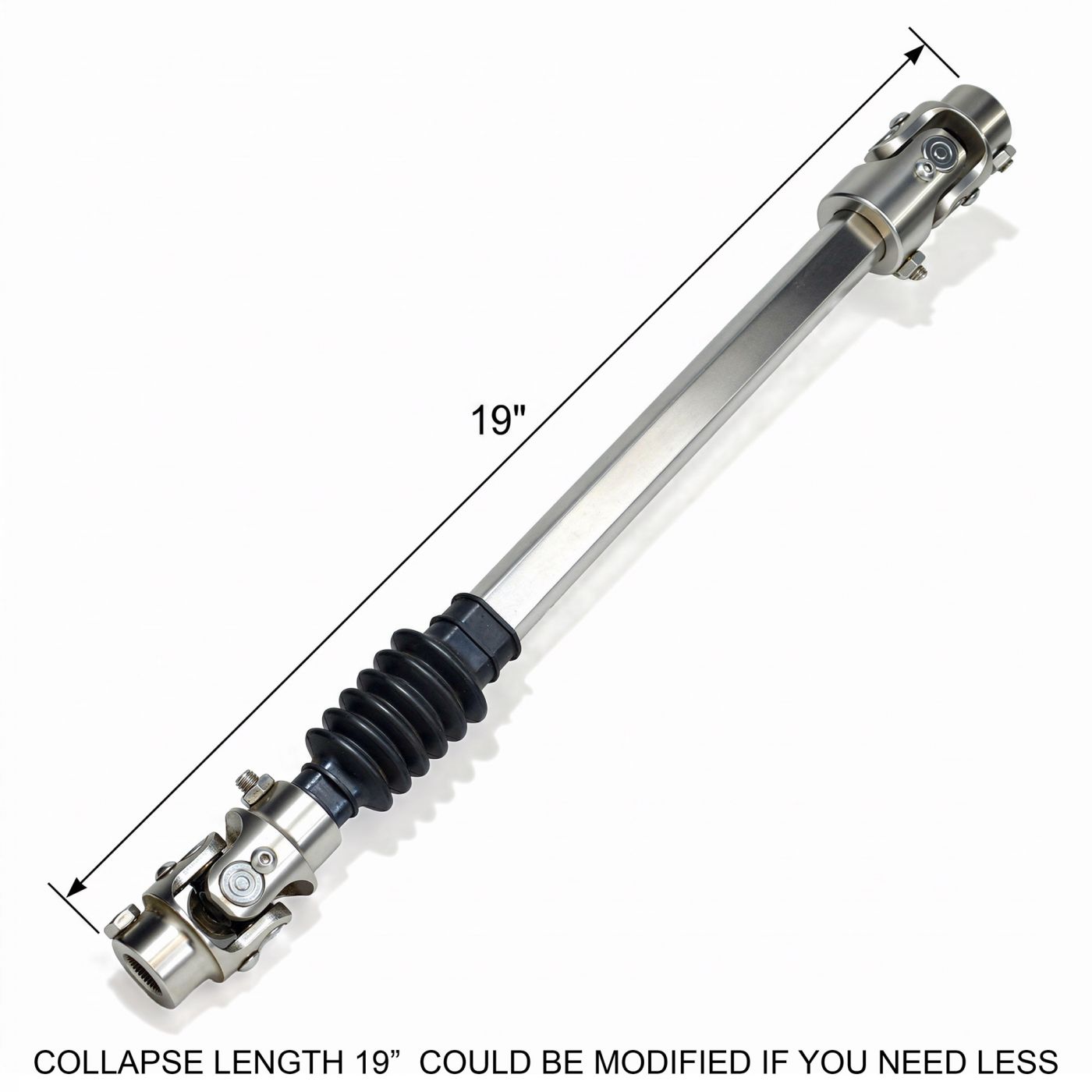

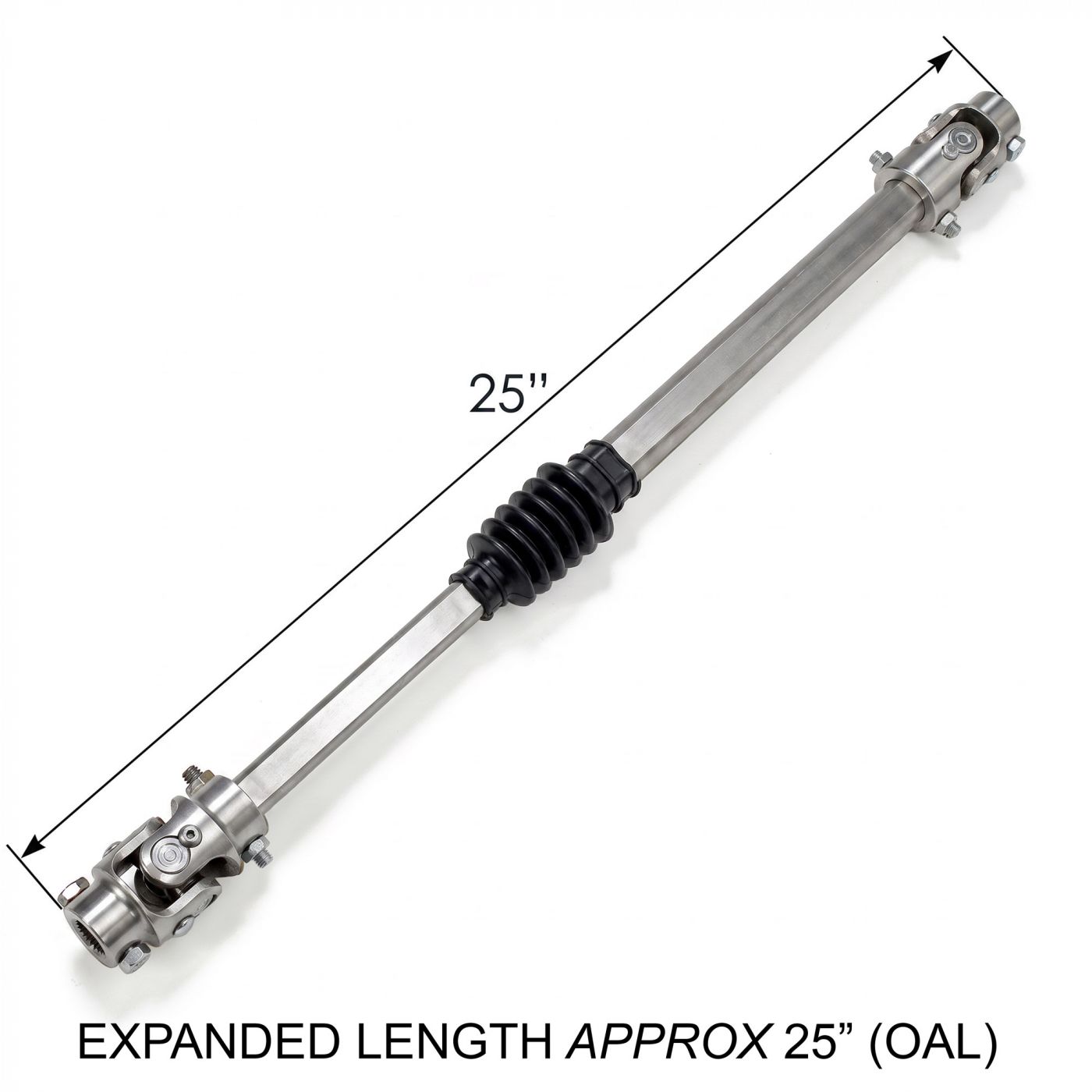

Adjustable & Collapsible – Adapts to different setups and maintains proper alignment.
Corrosion-Resistant – Zinc-plated for long-lasting protection.
Lifetime Lubrication – Machined lube and spring reservoir ensures smooth performance.

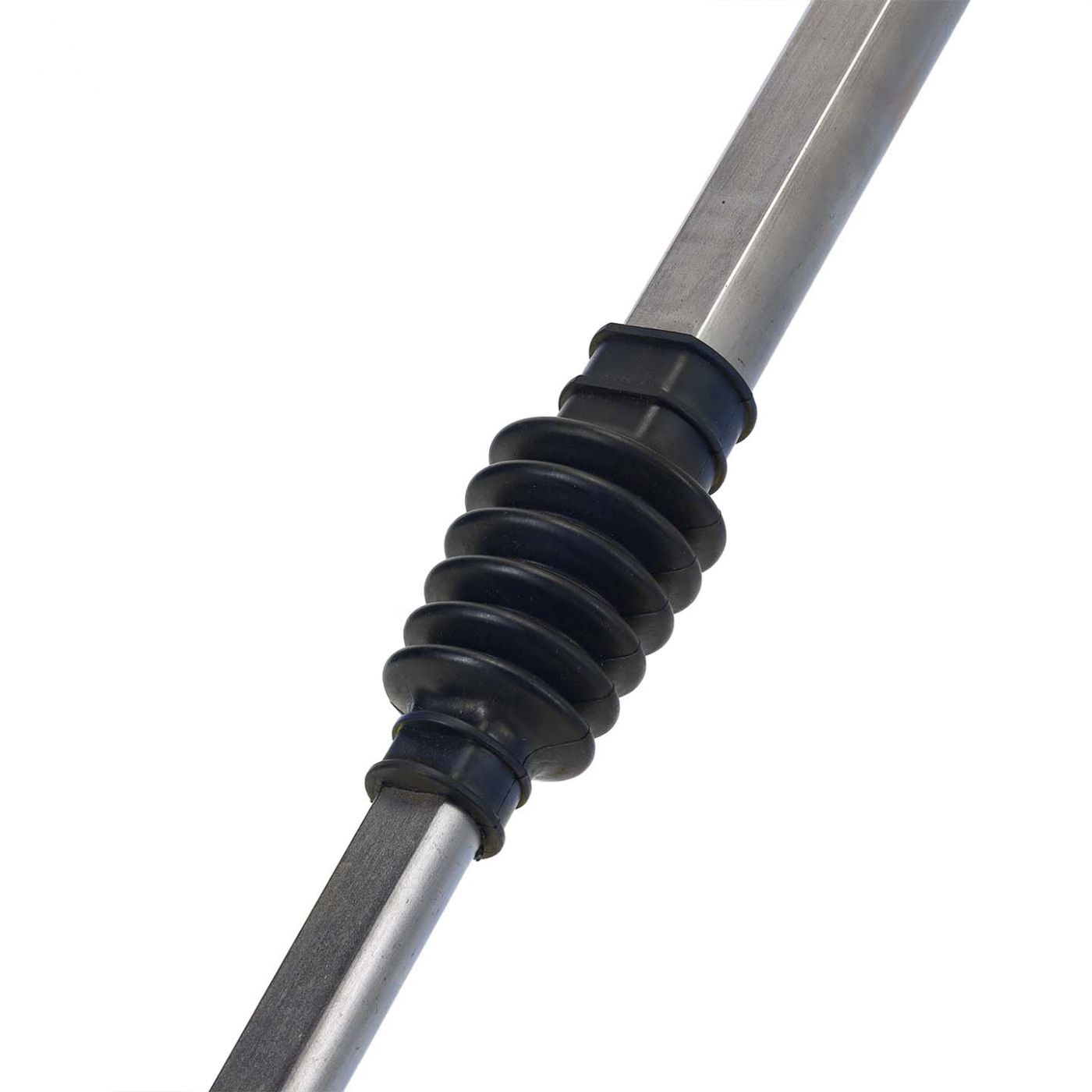

Dampening Spring & Dust Boot – Reduces vibrations and keeps contaminants out.

We have solved countless steering issues and we build in excess of 50 different lower shafts for all the different combinations that have come our way. These shafts are an excellent way to solve steering shaft angle problems that can result from body lift installations.

For 66-75 Broncos equipped with Manual Steering: Grinding your existing upper shaft will be necessary for installation.

For 73-77 Broncos with a Factory Two-Piece Steering Shaft: This will completely replace the lower shaft and it is basically a bolt-in installation.

Need a Custom Lower Steering Shaft?

If you have a custom setup, we can build a shaft specifically for your Bronco! Call our sales team at (209) 400-720 for expert guidance.

Responsive YouTube Video

California residents: Proposition 65 Warning

Q&A

Please Sign In if you have a question or want to post an answer.

Asked by Ross Adams, August 2, 2023

Q: I can't get the lower joint seated fully on the steering box. Can get it about half way on. Is this correct? Don't want to hit it with anything that could damage box...

⮞ 1 Answer

Answered by ☆ sales - August 10, 2023

A: Sometimes the joints are tighter than others. You may try some light sanding on the input shaft and make sure it is smooth and free of debris. You can use some light force if needed, but we wouldn't recommend and serious hitting.

Asked by Wayne C Prather, June 13, 2022

Q: Ive had my custom steering shaft installed fir a few year and love it. The one thing about it I'm not sure if its right or not. The shaft is completely compressed together when installed, which leaves no room for compression in the event of a front end collision. Should I shorten the sleeved upper segment? If so how much?

⮞ 1 Answer

Answered by ☆ sales - June 13, 2022

A: You can cut either the upper, and/or the lower shaft. The upper shaft would be easier alone, as the lower does have a notch, You should be able to reduce it a couple inches without issue. If you want more than that, we would shorten both. Just make sure when installed, or when done, the tension spring is covered by the outer shaft.

Asked by Steven D. Brooten, September 1, 2021

Q: I have a IDIDIT Direct Fit from you, will this fit, as it has the newer ragjoint that you had me purchase also ? I am supposing that when I order this that I will need to let you know of this ? My Bronco is a 1975 w/ the original power steering box. Thank You!

⮞ 1 Answer

Answered by ☆ sales - September 9, 2021

A: With the direct fit, you may use the original shaft, the new rag joint just simplifies the process. This collapsible shaft would work in place of the stock rag joint and shaft. You would select stock power steering for both the upper and lower joints.

Asked by Anonymous, September 28, 2020

Q: Will this work as is with a 2 body lift or do I need a longer length?

⮞ 1 Answer

Answered by ☆ sales - September 29, 2020

A: The adjustable steering shaft does extend and compress. It fits most situations, from stock up to 3 of body lift.

Asked by Anonymous, July 15, 2019

Q: Is there an option to get the shaft with a rag joint on the upper portion?

⮞ 1 Answer

Answered by ☆ sales - July 17, 2019

A: No, normally the rag joint is removed (pulled off), revealing a 3/4-36 splined shaft for the new joint.

NEED HELP? Talk to a BRONCO expert today! (209) 400-7200

PRODUCT REVIEWS

Robert Collins

Reviewed 01/16/2022

High quality u-joints and much mire beefier and reliable than a rag joint and stock shaft.

Dave Gilliland

Reviewed 01/29/2022

Instructions excellent Install was quick and easy- I'm a shade tree mechanic so says a lot for the product Only complaint is had to make a double D out of the old shaft to fit the coupling on the new shaft, but after practicing on piece of old shaft it worked out good. Thank you for a great product My Bronco already drives far and away better than with the old unit I had

Tony

Reviewed 07/27/2021

With a power steering kit and the WH 1" body lift on my 76 Bronco the stock shaft was too short, WH staff custom built me one and it looks and works great, super fast, I received it across country in 4 days.

Danny JacksonLExcellant

Reviewed 10/11/2021

Very nice product, well built, fits great.

Douglas Varney

Reviewed 06/12/2020

The custom steering shaft was exactly what I needed to put my work horse back to work. The instructions were excellent and the repair went smoothly

Matt Stockwell

Reviewed 01/06/2020

I bought this to use on a 72 Ford pickup mounted on a 95 F350 powerstroke chassis. This was extremely well made and mounded great between the 72 steering column and 95 steering box. This has been a daily driver for 6 months now and the steering shaft hasn't had any issues. I recommend this to anyone doing a chassis swap on an old Ford pickup or Bronco.

Christian P Herold

Reviewed 02/03/2019

Purchased lower shaft to replace worn out loose original. Wild Horses sales staff was extremely helpful in identifying the steering gear I had (PO made numerous modifications) and shipping the correct replacement shaft. Bolted right in with zero issues. Looks great and more importantly, tightened up my steering.

Jared Marshall

Reviewed 05/09/2018

We all know that the term "bolt-on" for any early bronco part is the equivalent of finding a unicorn in your back yard, however, this actually was. Very nice part and very easy to install, probably took me all of 15 minutes! Looks very nice also.

Scott Barnes

Reviewed 01/28/2018

This is a high quality piece that is a terrific improvement over the stock rag joint shaft. Very easy install once you have the old lower shaft removed (which can be a bear).

Doyle Winegar

Reviewed 03/20/2017

Great product. High quality, perfect fit.

Doghows

Reviewed 07/26/2016

Awesome part, fit perfect and customer service to get the correct ends was perfect.

Tim H

Reviewed 09/25/2014

The shaft fits and looks great. Tightened up the steering dramatically.

MYANU ISA

Reviewed 11/19/2013

UR THE BEST HAND DOWN.GREAT CUSTOMER SERVICE

Chris Smith

Reviewed 05/09/2013

This piece is amazing! It does exactly what they say it will do with good instructions.

steve shull

Reviewed 08/10/2012

Craftsmanship & good looks....that is what you get at Wildhorses. The lower steering shaft I received for my '73 is a work of art, and obviously tough!

Fuzzy2133

Reviewed 02/17/2012

This Custom steering shaft is likely to out last my truck. Yes the cost can be a shocker however it will probably be the last one you ever have to buy.

R.O. Hutchens

Reviewed 02/09/2012

Great product. Easy install directions.

Jeremy Dugger

Reviewed 05/18/2019

Work great

Ryan

Reviewed 06/07/2011

Website had more detailed information than others so I knew what I needed. YouTube videos helped showcase install of column components.

Eric Burke

Reviewed 05/09/2010

I bought this to replace a stock '70 lower steering shaft and am very happy with not only the quality but the ease of installation. I would definitely recommend it to anyone.
