Classic Instruments Gauge Cluster, Gray, 66-77 Ford Bronco, 61-66 Ford Truck SKU: 5973
Classic Instruments Gauge Cluster, Gray, 66-77 Ford Bronco, 61-66 Ford Truck
Classic Instruments Gauge Cluster Gray 66-77 Bronco 61-66 Truck
Product Overview:

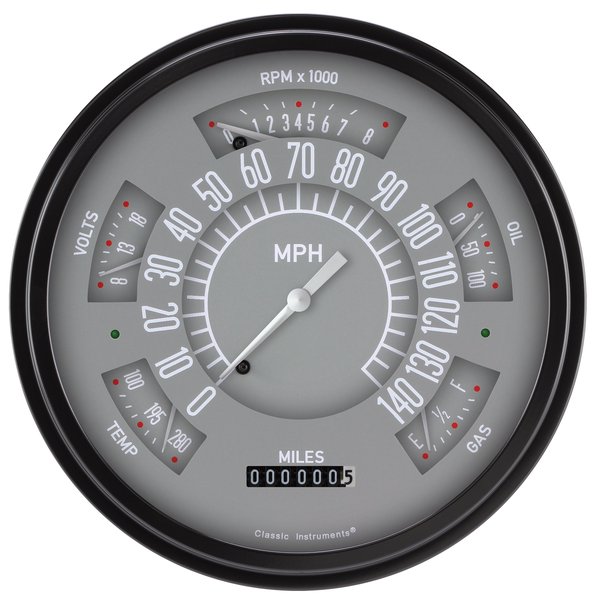

The '66-'77 Ford Bronco Package features the speedometer, tachometer, fuel, temperature, volt, and oil gauges all in one direct fit instrument. Installing the all-electronic cluster is easy with the included model specific mounting hardware, Classic Instruments' Zeus Speedometer Technology™ for push button calibration, and all the included sending units. Key Features • Direct fit into the stock dashboard using factory holes with the included mounting hardware , • LED lighting with built-in LED dimmer, and molded "light intensifier" ring for bright, even lighting. Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster • Turn signal indicators in the left and right sides of cluster, green LEDs • High beam indicator hidden at the top of the tachometer, red LED HaloTM • Zeus Speedometer Technology built-in (patent pending), molded plastic back housing • Works directly with ECM or VSS signal, no additional control boxes needed • Push button calibration, switch included, part no. SNPB • ECM signal filter switch built-in • Standard Ford sender kit included (temp., oil, speedometer senders), part no. SNFD • Optional stainless steel bezel *Please change fuel ohm range if you are using a factory fuel sender. (Ex. Ford pre-1986: 75-10, GM 1964 or earlier: 0-30, GM 1965-1998: 0-90)
Full description
The '66-'77 Ford Bronco Package features the speedometer, tachometer, fuel, temperature, volt, and oil gauges all in one direct fit instrument. Installing the all-electronic cluster is easy with the included model specific mounting hardware, Classic Instruments' Zeus Speedometer Technology™ for push button calibration, and all the included sending units. Key Features • Direct fit into the stock dashboard using factory holes with the included mounting hardware , • LED lighting with built-in LED dimmer, and molded "light intensifier" ring for bright, even lighting. Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster • Turn signal indicators in the left and right sides of cluster, green LEDs • High beam indicator hidden at the top of the tachometer, red LED HaloTM • Zeus Speedometer Technology built-in (patent pending), molded plastic back housing • Works directly with ECM or VSS signal, no additional control boxes needed • Push button calibration, switch included, part no. SNPB • ECM signal filter switch built-in • Standard Ford sender kit included (temp., oil, speedometer senders), part no. SNFD • Optional stainless steel bezel *Please change fuel ohm range if you are using a factory fuel sender. (Ex. Ford pre-1986: 75-10, GM 1964 or earlier: 0-30, GM 1965-1998: 0-90)
The '66-'77 Ford Bronco Package features the speedometer, tachometer, fuel, temperature, volt, and oil gauges all in one direct fit instrument. Installing the all-electronic cluster is easy with the included model specific mounting hardware, Classic Instruments' Zeus Speedometer Technology™ for push button calibration, and all the included sending units.
Key Features
• Direct fit into the stock dashboard using factory holes with the included mounting hardware ,
• LED lighting with built-in LED dimmer, and molded "light intensifier" ring for bright, even lighting. Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster
• Turn signal indicators in the left and right sides of cluster, green LEDs
• High beam indicator hidden at the top of the tachometer, red LED HaloTM
• Zeus Speedometer Technology built-in (patent pending), molded plastic back housing
• Works directly with ECM or VSS signal, no additional control boxes needed
• Push button calibration, switch included, part no. SNPB
• ECM signal filter switch built-in
• Standard Ford sender kit included (temp., oil, speedometer senders), part no. SNFD
• Optional stainless steel bezel
*Please change fuel ohm range if you are using a factory fuel sender. (Ex. Ford pre-1986: 75-10, GM 1964 or earlier: 0-30, GM 1965-1998: 0-90)
Key Features
• Direct fit into the stock dashboard using factory holes with the included mounting hardware ,
• LED lighting with built-in LED dimmer, and molded "light intensifier" ring for bright, even lighting. Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster
• Turn signal indicators in the left and right sides of cluster, green LEDs
• High beam indicator hidden at the top of the tachometer, red LED HaloTM
• Zeus Speedometer Technology built-in (patent pending), molded plastic back housing
• Works directly with ECM or VSS signal, no additional control boxes needed
• Push button calibration, switch included, part no. SNPB
• ECM signal filter switch built-in
• Standard Ford sender kit included (temp., oil, speedometer senders), part no. SNFD
• Optional stainless steel bezel
*Please change fuel ohm range if you are using a factory fuel sender. (Ex. Ford pre-1986: 75-10, GM 1964 or earlier: 0-30, GM 1965-1998: 0-90)
California residents: Proposition 65 Warning
Q&A
Please Sign In if you have a question or want to post an answer.
Asked by Rusty Dunning, September 26, 2023
Q: What color green is this?
I have a boxwood green Bronco I'm trying to match
⮞ 1 Answer
Answered by ☆ sales - October 3, 2023
A: The gauge is Grey with White letters. We do not offer a green version, just bad lighting in the one picture.
