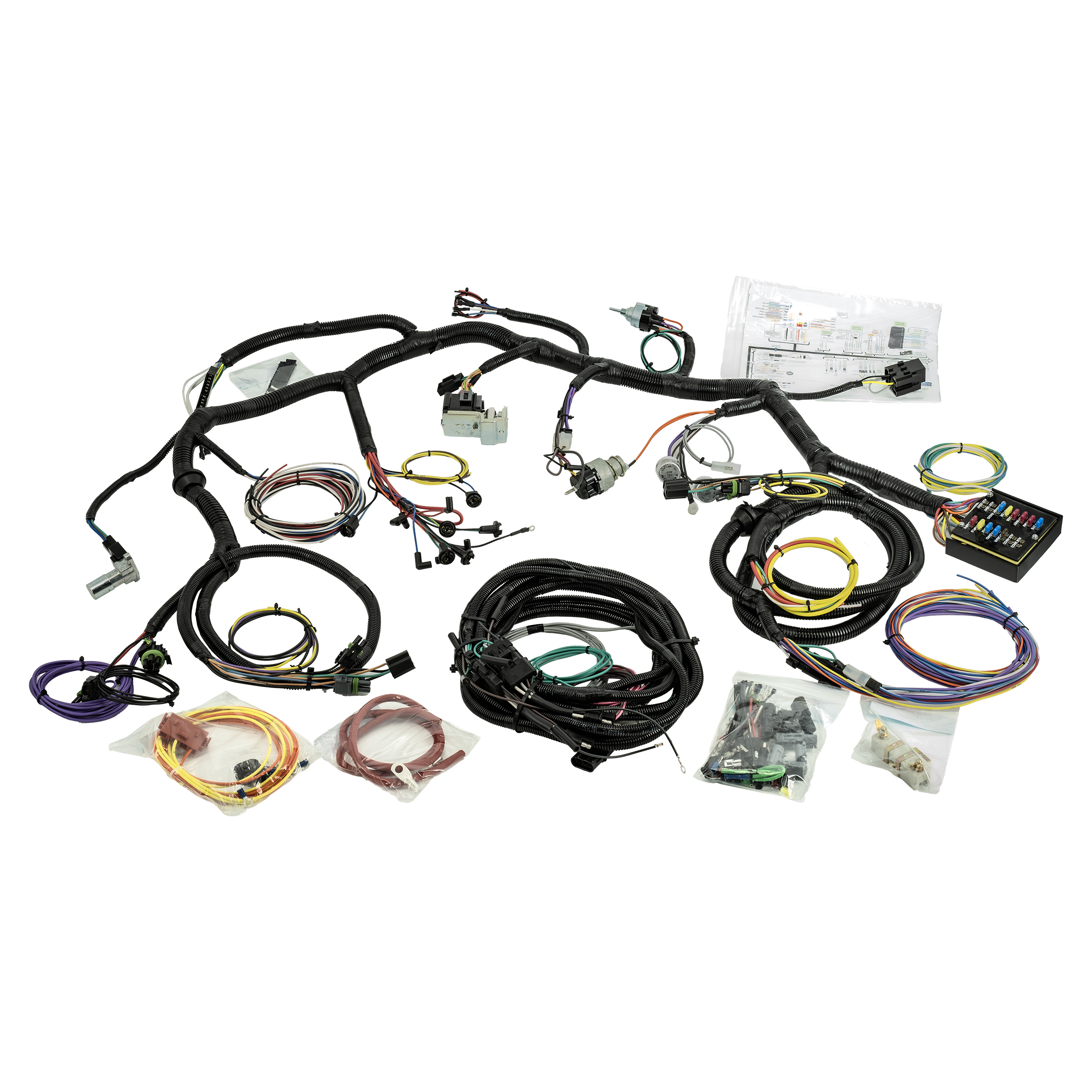

Classic Wiring Harness - Pre-Loomed, Complete, 66-77 Ford Bronco SKU: 6092

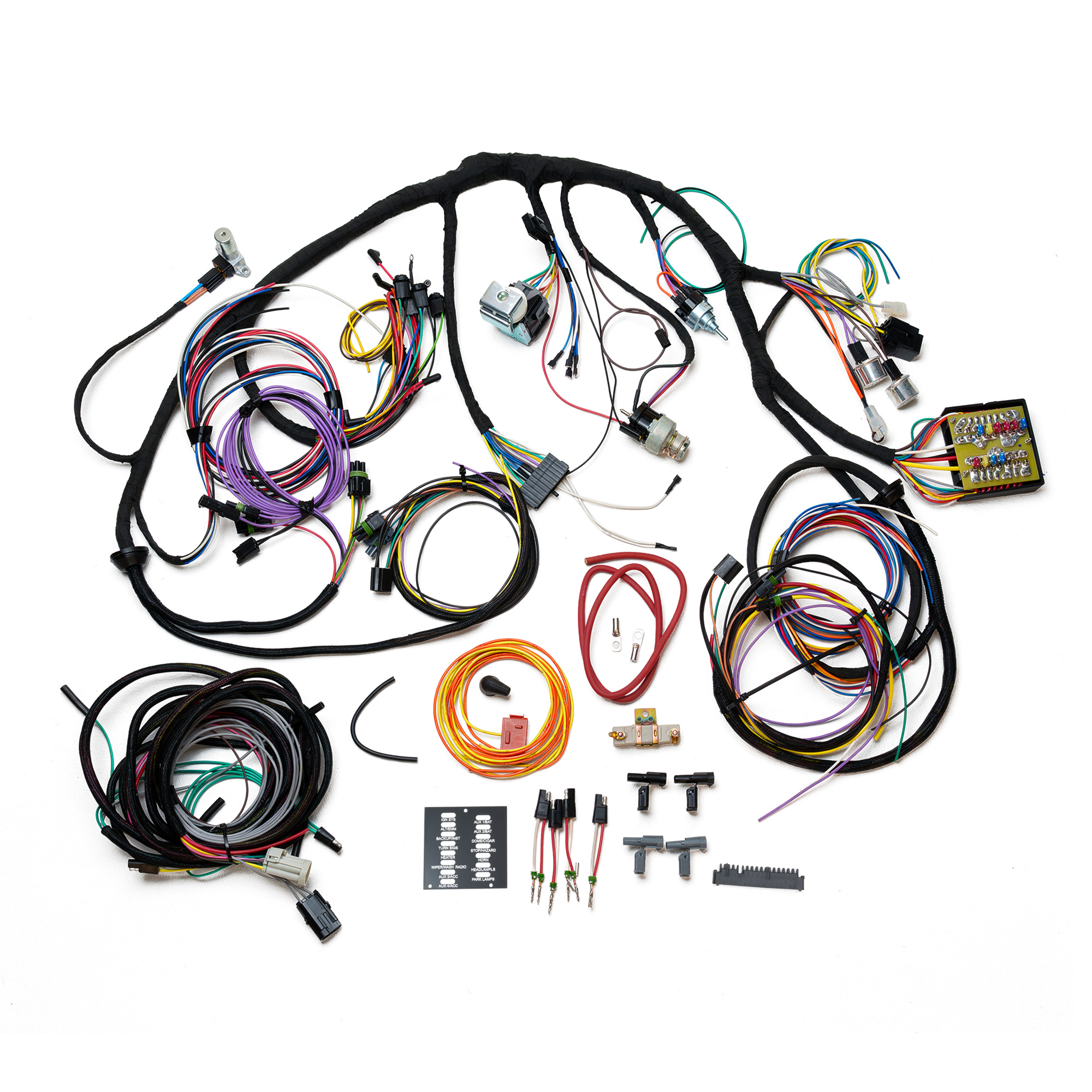

Classic Wiring Harness - Pre-Loomed, Complete, 66-77 Ford Bronco
Product Overview:
Upgrade your Early Bronco’s electrical system with confidence using this complete, fully loomed wiring harness. Designed to make installation as simple as possible, this virtually plug-and-play setup comes with pre-installed connectors, clearly labeled wires, and step-by-step instructions for a clean, professional finish. With modern features like a 15-circuit fuse box and extra circuits for accessories, it’s the perfect solution for restorations, custom builds, or anything in between—giving your Bronco reliable, future-ready power from bumper to bumper.
Full description
Upgrade your Early Bronco’s electrical system with confidence using this complete, fully loomed wiring harness. Designed to make installation as simple as possible, this virtually plug-and-play setup comes with pre-installed connectors, clearly labeled wires, and step-by-step instructions for a clean, professional finish. With modern features like a 15-circuit fuse box and extra circuits for accessories, it’s the perfect solution for restorations, custom builds, or anything in between—giving your Bronco reliable, future-ready power from bumper to bumper.
Early Bronco Wiring Harness | Easy Install, Pre-Loomed
Simplify Your Rewire. Power Up Your Build.
Take the guesswork out of your Bronco’s electrical system with this fully loomed, virtually plug-and-play wiring harness, custom-designed for your 1966–77 Ford Bronco. Packed with upgrades and designed for both restorations and custom builds, this harness features labeled, color-coded wires and easy-to-follow instructions, making installation smooth—even if you’re wiring a Bronco for the first time. This is the closest alternative to the old Centech Early Bronco Wiring Harness that we used to offer.
-
Virtually Plug-and-Play – Most connectors are pre-installed, speeding up installation time
-
Fully Loomed Harness – Ensures a clean, organized layout for a professional finish
-
Labeled Wires – Every wire is printed with its function for easy identification
-
15-Circuit Fuse Box – A major upgrade from the factory 5-circuit design
-
Extra Circuits for Accessories – 4 open circuits: 2 key-on, 2 constant power
-
Includes Key Components:
-
Ignition Switch
-
Wiper Switch
-
Dimmer Switch
-
Heavy-Duty Headlight Switch
-
LED Dash Light Bulbs
-
-
Low Profile Fuse Box – Mounts inside glovebox liner, retains space for dash speaker
-
Flexible Charging Options:
-
OEM-style alternator harness for external regulators
-
One-wire alternator harness also included
-
-
Ballast Resistor Included for Optional Points Setup – For original points distributors
-
Complete Install Kit – Includes zip ties, connectors, and full-color wire schematic
-
Step-by-Step Instructions – Easy to follow with clear diagrams and photos
Additional Parts to Consider: Depending on the year of your Bronco and the specifics of your build, there are additional parts you may need to complete your wiring installation properly. While this harness covers the core of your electrical system, details can vary across model years and configurations. For example, 1971–77 Broncos will need a new glove box liner to accommodate the low-profile fuse box, and if you’re running dual fuel tanks or factory marker lights, additional harnesses and connectors will be required. Custom setups or aftermarket accessories might also call for extra clips, heat shrink, or switches to finish the job cleanly. Taking the time to plan your build ensures a smooth install and a reliable electrical system built to handle all your upgrades.
Some additional parts you may need for installation include:
-
Battery Cables - Check out our Extreme Battery Cables, a perfect add-on to your wire harness.
-
Glove Box Liner (No Hole) - The fuse box in this kit does not match the OEM fuse box, so if you have a hole in your glove box liner for the original fuse panel, you will need to purchase a new No Hole Glove Box Liner to complete the installation. If you have a Vintage Air kit, you will be able to use the liner that they include with their kit.
-
Ground Strap Kit - One of the most common electrical issues stems from insufficent grounds. We strongly recommended adding this kit for better reliability.
-
Brake Warning Light Socket - If you plan to use the factory brake pressure warning light on the dash, you will want to pick up this kit to make that work.
-
Washer Pump Connector (71-77 Bronco) - If you want to run the 1971-77 Bronco windshield washer reservoir, or our combo washer/coolant bottle, you will need this pigtail to plug into the pump.
-
Wiring Harness Clips - These wiring harness clips can come in handy for keeping your new harness install clean and tucked away.
-
Brake Light Switch (67-77 Bronco) - Brake light switch is not included in the kit because 1966 Broncos had a hydraulic type switch. Make sure you have the setup you need for your application.
-

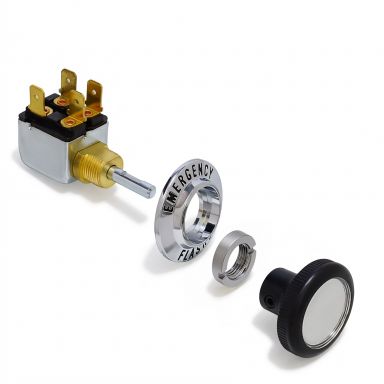

Dash Hazard Switch (66–73 Bronco) - From 74-77, the Bronco came with a hazard in the turn signal switch. If you have a 66-73 Bronco, you will need the dash mounted hazard switch.
-
Fuel Sending Unit Connectors - If you are running factory fuel sending units, you will want to pick up one or two of these sending unit connectors (depending on whether you're running single or dual gas tanks).
-
OEM Heater Harness - You will want to reuse your factory heater harness as it is not included in this kit.
-
Marker Light Harnesses - If you have a 1970–77 Bronco, you will want to pick up a set of marker light wiring harnesses to connect into this wiring kit.
-
Miscellaneous Supplies - There are always small bits and pieces you will want to have around for your installation. While we try to provide everything, depending on your specific build, you will likely find yourself needing these items here and there. This could include heat shrink, connectors, tape, etc.
Simplify your install, improve your Bronco’s reliability, and get room for future upgrades with this all-in-one wiring solution. Whether you’re going back to stock or building a fully custom rig, this harness gives you the clean power foundation your Bronco deserves!
